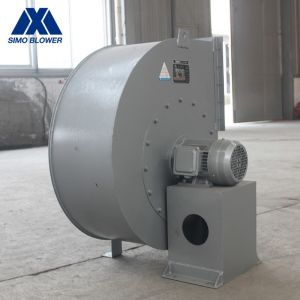

16Mn Medium Pressure Coal Mill Material Handling Centrifugal Blower
Fan
Introduction
The 16Mn Medium Pressure Coal Mill Material Handling Centrifugal Blower
Fan can be used in the feeding system of 2-670t/h steam boiler in
thermal power plants, it can also meet the requirements of the
high-pressure head performance parameters of the fluidized bed
furnace.
This series of fans can also be used for dust removal, mine
ventilation and general ventilation systems. The blower delivers
air, and the induced draft fan delivers flue gas or gas containing
foreign particles.
16Mn Medium Pressure Coal Mill Material Handling Centrifugal Blower
Fan can be used for more than four years when the concentration of
impurities is less than 200 mg/m3.
If it contains a lot of impurities, it also can be used, but it
will shorten the service life.
The maximum operating temperature of the induced draft fan must not
exceed 250°C.
The performance of the fan is expressed by parameters such as fan
flow, full pressure, spindle speed, shaft power and efficiency.
Technical data
| series | model | Centrifugal Blower Rotation Speed
(r/min) | Centrifugal Blower Total Pressure
(Pa) | Centrifugal Blower Air Capacity
(m³/h) | Power
(kW) |
|---|
5-05 Centrifugal Blower | 2.5A | 2825 | 907～680 | 599～1252 | 0.75 |
| 2.8A | 2825 | 1274～984 | 1017～1760 | 0.75 |
| 5.4A | 1420 | 1181～906 | 3699～6337 | 3 |
| 6.3A | 1440 | 1607～1233 | 5874～10064 | 5.5 |
| 6.5A | 1440 | 1711～1313 | 6451～11053 | 5.5 |
Advantages and Features
1. Impeller:
12 pieces of backward aerofoil blades are welded between the Arc
cone front plate and the flat shaped rear plate. Because of the use
of airfoil blades, the fan is guaranteed to have high efficiency,
low noise and high strength. The impeller is corrected by static
and dynamic balance, so the operation is stable. Forced draught fan
and induced draught fan of the same machine number have same
impeller structure.
2. Casing:
The casing is a volute welded by ordinary steel plates.
The casing of a single suction fan is made in three different
forms: The No. 8 to 12 casing is made into an integral structure
and cannot be disassembled; The No. 14 to 16 casing is made into a
two open structure; The No. 18~29.5 casing is made into a three
open structure.
The induced draft fan and the volute plate are appropriately
thickened to prevent wear.
FAQ
1. What parameters need to be provided when you design the
industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet
temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the
medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales
service?
Answers: Before our cooperation, we have the professional technical
team to help you make the technical solution according to your
working condition, to make sure the centrifugal fan efficiency
operation.
After sales service, we will offer 12 months’ repairing service,
and provide lifelong follow-up services. Besides, our engineers are
available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV
certifications and so on.
