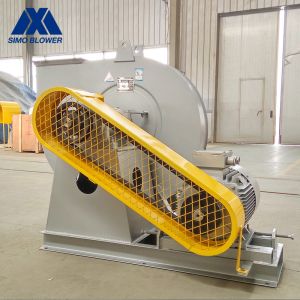

Industrial Equipments Heat Dissipation V-Belt Driving Centrifugal
Fan
Introduction
The 6-03 series industrial centrifugal blower fans have the characteristics of high efficiency, flat performance
curve, wear resistance, and work stability.
It has excellent performance and can output high pressure.
Industrial Equipments Heat Dissipation V-Belt Driving Centrifugal
Fan can be used to transport normal temperature or high temperature
non-flammable gases, particles, powder, debris, fibrous materials
etc.
The centrifugal blower fans have high pressure coefficient, low
peripheral speed, low noise, flat performance curve and wide area
of high efficiency.
They are used in forging furnaces and high pressure forced
ventilation and are widely used to transport materials and air. The
maximum temperature should not exceed 250 degrees Celsius.
Suitable for flow and dust removal ventilation systems in high
pressure heads.
Technical data
PRODUCT PARAMETERS |
centrifugal blower fan Application | Temperature | Normal temperature air, Hot air |
| Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder
materials, Light particle materials |
centrifugal blower fan Performance | Impeller diameter | 600~900 | mm |
| Speed of mainshaft | 1500~2400 | rpm |
| Pressure range | 187~5482 | Pa |
| Flow range | 2403~17300 | m3/h |
centrifugal blower fan Structure | Blade | Backward |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. |
| Drivetrain | V-belt | Can assign |
| Lubrication | Oil bath lubrication |
| Bearing cooling | Air cooling, Water cooling, Oil cooling |
centrifugal blower fan System
configuration | Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
| Impeller | Q235, Q345, SS304, SS316, HG785, DB685... |
Casing, Air inlet cone, Air inlet damper | Q235, Q345, SS304, SS316, HG785, DB685... |
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless
steel... |
| Bearing | FAG, SKF, NSK, ZWZ… |
centrifugal blower fan Optional
components | System base frame, Protective screening,Silencer, Inlet & Outlet
pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator,
Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature
sensor, Vibrating sensor, Soft starter, Inverter, Special
Electrical Motor,System monitoring Instrument, Lube system,
Overhead lube tank etc |
Advantages and Features
1. For the material of impeller and main spindle, we will choose
high-strength carbon steel, low-alloy steel, high-temperature alloy
steel, high temperature high-strength alloy steel for different
working conditions temperature and working speed, so that the
impeller and main spindle at high temperature still maintain
reliable strength.
2. For dusty gas, we can meet all kinds of working conditions from
small amount of dust to large amount of dust. After special
treatment, the hardness of blade surface can reach HRC60~70, which
can extend the life of the impeller by more than 3 times.
3. The moderate bonding between the components is tight, and the
sealing performance is good, ensuring that the output pressure will
not be reduced.
4. After annealed treatment, the internal stress of the structure
generated during welding can be completely eliminated to ensure
that the impeller will not creepage and crack.
