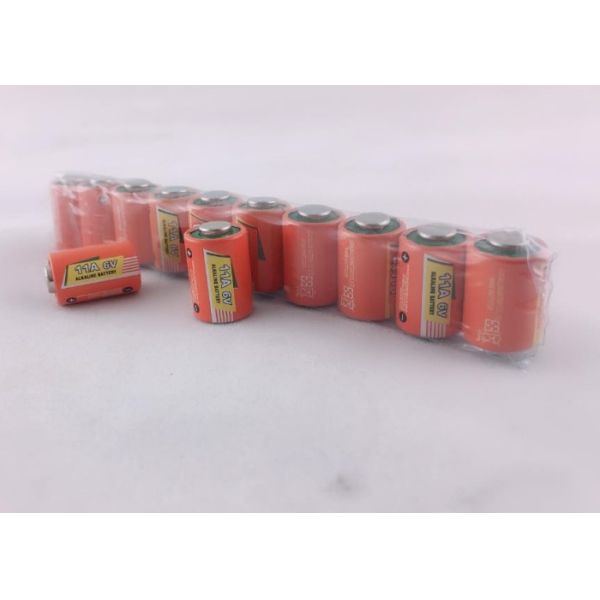

6V 11A E11A L1016 52mAh Alkaline Battery Doorbells Flashlights Car
Key Remotes Electronic Games
Description:
The 6V 11A E11A L1016 Alkaline Battery is worked in Cosmetic pen,Doorbells, Flashlights, Car Key Remotes and
other .And it has a low power consumption and is energy-saving. With no
pollution, no infrared and no thermal radiation, It is also easy to
install, affordable, and a high quality Battery!
Equivalent to: 11A, A11, ALK-11A, CA21, CX21A, E11, E11A, G11A, GP11, GP11A,
HAN197, HANGER 9, L1016, LR-11, MN11, WE11A
Applications:
Cosmetic pen, Doorbells, Flashlights, Car Key Remotes,
Electric shock stop barking, camera,remote control,electronic
scales,electronic toys,computers,game consoles,anti-bark
collar,laser pointer and alarm clock, Dog Training Shock Collar
Cameras, Car Alarm Remote and other equipment.
Specifications:
| Nominal Voltage | 6V |
| Nominal Capacity (Continuous Discharging Under 1kΩ load to 3.6V
End-Voltage at 20℃) | 52mAh |
| Operating temperature range | -20℃~60℃ |
 | A(ref.) | 0.90-1.20 |
| B | 16.00-16.20 |
| C | 9.95-10.05 |
| D(ref.) | 0.05 |
| Mass | Approx 4.35g |
| Open-circuit Voltage | 6.3V |
| Appearance and poles | Appearance should be smooth, clear mark, no deformation, rust, and
leakage |
| Minimum Average Discharge Time(1kΩ) | Initial test (New battery) | 600mins |
| After 12 months | 550mins |
| Leakage Characteristics (Over discharge) | No Leakage |
Discharge Curve:(Condition: Continuous Discharging Under 1kΩ load to 3.6V End-Voltage at 20℃)
Discharge Curve:(Condition: Continuous Discharging Under 10kΩ load to 3.6V End-Voltage at 20℃)
Competitive Advantage:
1) Environmental friendly,Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
Tag:High Voltage battery,Alkaline battery
