Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe

Ask Lasest Price
Brand Name :	LHTi
Model Number :	tube
Certification :	ISO9001-2015
Price :	$20--$28/pcs
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	5Ton per month
Delivery Time :	15 workdays

Add to Cart

Product Details
Company Profile

Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe

Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe

Product Name: 32mm OD38mm Titanium pipe

Standard: ASTM B338

Material: Gr1, Gr2

Type: Welded/Seamless

Shape: Round

Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc.

Wall Thickness: 0.5-3.0mm

Length: Max 12000mm

Surface: Bright,pickled

1.Heat exchanger tube application

2.Titanium ally pipe specification

Grade	N(%)	C(%)	H(%)	Fe(%)	O(%)	Ti	Other , max
1	≤0.03	≤0.08	≤0.015	≤0.20	≤0.18	Bal	≤0.4
2	≤0.03	≤0.08	≤0.015	≤0.30	≤0.25	Bal	≤0.4

Grade	Tensile Strength(min)		Yeild Strength(0.2% offset))				Elongation(%)
	ksi	MPa	Min		Max
	ksi	MPa	Ksi	Mpa	Ksi	Mpa
1	35	240	15	140	45	310	≥24
2	60	400	40	275	65	450	≥20

Product name	Heat exchanger tube Titanium tube /pipe
Material	Titanium(Gr2)
Certificate	ISO9001:2015, TUV, EN10204.3.1
Standard	ASTM B338
Size	OD19mmxWT0.5-0.8mmx3000-12000mm OD25mmxWT1.0-1.2mmx3000-12000mm OD32mmxWT1.0-1.2mmx3000-6000mm OD38mmxWT1.0-1.2mmx3000-6000mm Or according customer’s requirement.
Technics	Rolled
Status	Annealed(M)
Type	Seamless Titanium Tube for heat exchanger, Titanium exhaust tube for automobile, titanium coil tube Welded Titanium Tube,
Application	1)Power and chemical plant 2)Automotive components 3)sports 4)marine corrosion
Surface	Acid pickling, CNC lathe surface.

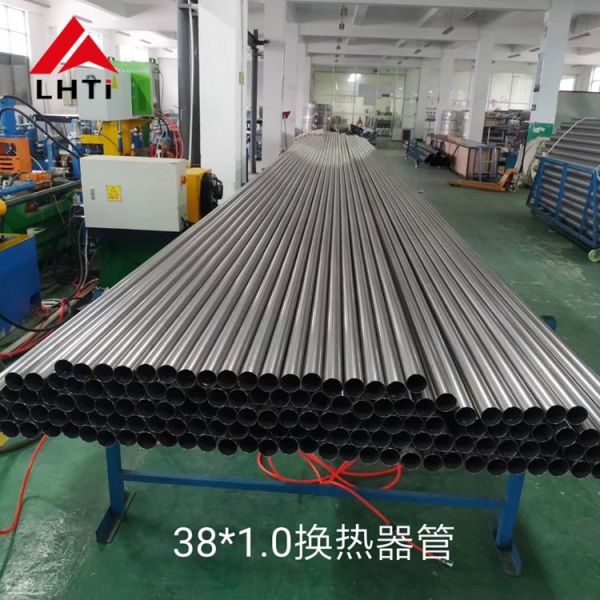

3. Details picture in Workshop

Material Grade	Status	Processing	OD(mm)	Wall thickness(mm)
Material Grade	Status	Processing	OD(mm)	0.5	0.6	0.8	1.0	1.25	1.5	2.0	2.5	3.0	3.5	4.0	4.5
Gr1 Gr2 Gr7 Gr12	Annealed (M)	Cold rolled	10-15	○	○	○	○	○	○	○	—	—	—	—	—
			﹥15-20	—	○	○	○	○	○	○	○	—	—	—	—
			﹥20-30	—	○	○	○	○	○	○	○	—	—	—	—
			﹥30-40	—	—	—	—	○	○	○	○	—	—	—	—
			﹥40-50	—	—		—	—	○	○	○	○	—	—	—
			﹥50-60	—	—	—	—	—	○	○	○	○	○	—	—
			﹥60-80	—	—	—	—	—	—	○	○	○	○	○	○
		Welded	16	○	○	○	○	—	—	—	—	—	—	—	—
			19	○	○	○	○	○	—	—	—	—	—	—	—
			25,27	○	○	○	○	○	○	—	—	—	—	—	—
			31,32,33	—	—	○	○	○	○	○	—	—	—	—	—
			38	—	—	—	—	—	○	○	○	—	—	—	—
			50	—	—	—	—	—	—	○	○	—	—	—	—
			63	—	—	—	—	—	—	○	○	—	—	—	—
		Welded-rolled	6-10	○	○	○	○	○	—	—	—	—	—	—	—
			﹥10-15	○	○	○	○	○	○	—	—	—	—	—	—
			﹥15-20	○	○	○	○	○	○	○	—	—	—	—	—
			﹥20-25	○	○	○	○	○	○	○	—	—	—	—	—
			﹥25-30	○	○	○	○	○	○	○	—	—	—	—	—
Note: "○" indicates the specifications that can be produced

ASTM B338 titanium tube
Used:Heat exchanger, condenser and various pressure vessels
Wall thickness:0.5mm to 4.5mm
Length:3000mm /6000mm and longger to 9000mm
Outside Diameters:10mm to 114mm
Wall thickness tolerance: +/- 10%
Length tolerance: +3.2mm

4. Titanium tube Production process

5. ASME SB388 Test as below

We provide following tests for Ti seamless and welded tubes

Chemical Composition	Visual Inspect	Ultrasonic Testing	Current Testing
Flattening Testing	Flattening Testing	Pneumatic Test	Hydrostatic Test
Tensile	Yield	Hardness	Elongation

6. Feel free to contact titanium alloy tube supplier
