300L Flat Collector 1000L Stainless Steel Heat Pipe Split Solar
Water Heater 2 Coils
Advantage:
1. Highly efficient absorber of high performance with daily average
efficiency over 76%;
2. Blue film absorber with automatic production line,can supply you
stable high quality products;
3. Withstand pressure of 6 Bar, can be connected directly with city
water or your big water tank;
4. Simple structure, easy to assembly and install in short time, no
breakage;
5. Best insulation with polyurethane foam;
6. Can be used all year round in the cold climate;
7. Can be used together with auxiliary electric boost;
8. Long service life, can be used over 15 years;
Flat Plate Solar Water Heater Features:
1.Using patent advanced coating technology with high efficiency
performance.
2. High strength aluminum-alloy structure with surface varnish
baking
3. High visual shape ,easy installation ,maintenance free
4. Pressurized designing, operate with pressure up to 1 Mpa
5. Can be combined with existing energy source
Heat Pipe Split Solar Water Heater with Double Coils
| Model | PTS-H2-15 | PTS-H2-20 | PTS-H2-25 | PTS-H2-30 | PTS-H2-40 | PTS-H2-50 | PTS-H2-100 |
| Heat Pipe Solar Collector | Tubes (PCS) | 15 | 20 | 25 | 30 | 40 | 50 | 100 |
| Three Target Vacuum Tube | Diameter/Length: φ58mm/1800mm; High boron and silicon content 3.3;
Structure:Gradual change SS-AL-Nx/Cu selective absorption coating;
Vacuum Degree:P<=5*10-3; |
| Heat Pipe | Condesor: φ14*70mm; Thickness: 0.5mm ; Material: red copper
TU1+water; Transfer Power:>=150W; Working Pressure:4Mpa; Welding
Pressure:4Mpa; |
| Outer Shell/Bracket - Alluminum Alloy | Insulation Layer - Rock wool | Dustproof Rubber - EPDM | Dsily Heat Gain - 8.5MJ/m² |
| Inlet/outlet - 22mm/3/4" | Tailstock - ABS | Temperature - 250 °С | Work Pressure - 0.6MPa |
| Contour Area | 2.32m² | 3.10m² | 3.78m² | 4.52m² | 6.20m² | 7.56m² | 15.12m² |
| Aperture Area | 1.43m² | 1.89m² | 2.36m² | 2.83m² | 3.8m² | 4.72m² | 9.44m² |
| Absorption Area | 1.22m² | 1.62m² | 2.04m² | 2.43m² | 3.24m² | 4.06m² | 8.16m² |
| Quantity (PCS) | 15tubes*1 | 20tubes*1 | 25tubes*1 | 30tubes*1 | 20tubes*2 | 25tubes*2 | 25tubes*4 |

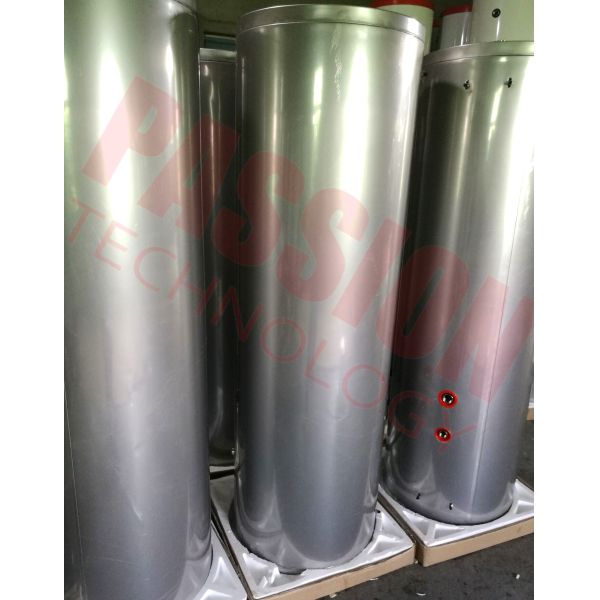

Water
Tank | Capacity | 150L | 200L | 250L | 300L | 400L | 500L | 1000L |
| Top Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*20 | Φ19*30 |
| Bottom Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*25 | Φ16*30 | Φ19*40 |
| Polyurethane Foaming (mm) | 55 | 50 | 50 | 50 | 60 | 60 | 100 |
| Outer Tank | Color Steel Plate/ Enamal White |
| Φ470/0.5 | Φ550/0.5 | Φ580/0.5 | Φ580/0.5 | Φ700/0.5 | Φ700/0.5 | Φ1000/0.5 |
| Inner Tank | SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar |
| Φ360/1.2 | Φ450/1.5 | Φ480/1.5 | Φ480/1.5 | Φ580*2.0 | Φ580*2.0 | Φ800/2.5 |
| Electrical Heater | 1500W | 1500W | 2000W | 2000W | 2000W | 2000W | 4000W |
| Working Station | SR961S (Including controler & WILO PUMP) |
| Expansion Tank | 8L | 8L | 8L | 8L | 12L | 12L | 24L |
Flat Panel Split Solar Water Heater with Double Coils PTS-F2
| Model | PTS-F2-15 | PTS-F2-20 | PTS-F2-25 | PTS-F2-30 | PTS-F2-40 | PTS-F2-50 | PTS-F2-100 |
| Flat Panel Solar Collector | Core material | Copper |
| Coating | Copper aluminum cover coating of Blue Titanium Absorption rate:
α=0.95 Reflection rate ε=0.04. |
| Base plate | Marine-grade H3004 Aluminum, toughnessH32 Thickness 0.7mm |
| Glass of panel | Special glass for panel With ANS1297-1-1975, BS6206A and JIS R3206
standards; toughness with AS2208-1978 and federal standards of
United States. |
| Panel Insulation | Bottom with fiberglass insulation ,Thickness 60mm,Density 20kg/m³;
Side-thickness insulation:13mm; Density 23kg/m³; Thermal
properties: R1.0 Thermal conductivity : 0.059W/m． |
| Quantity (PCS) | 1 | 1 | 2 | 2 | 3 | 3 | 6 |
Water
Tank | Capacity | 150L | 200L | 250L | 300L | 400L | 500L | 1000L |
| Top Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*20 | Φ19*30 |
| Bottom Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*25 | Φ16*30 | Φ19*40 |
| Polyurethane Foaming (mm) | 55 | 50 | 50 | 50 | 60 | 60 | 100 |
| Outer Tank | Color Steel Plate/ Enamal White |
| Φ470/0.5 | Φ550/0.5 | Φ580/0.5 | Φ580/0.5 | Φ700/0.5 | Φ700/0.5 | Φ1000/0.5 |
| Inner Tank | SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar |
| Φ360/1.2 | Φ450/1.5 | Φ480/1.5 | Φ480/1.5 | Φ580*2.0 | Φ580*2.0 | Φ800/2.5 |
| Electrical Heater | 1500W | 1500W | 2000W | 2000W | 2000W | 2000W | 4000W |
| Working Station | SR961S (Including controler & WILO PUMP) |
| Expansion Tank | 8L | 8L | 8L | 8L | 12L | 12L | 24L |
Flat Plate Solar Collector Technical Data :
Model | PT-F-AO | PT-F-BC | PT-F-BT |
Data |
Dimension LxWxH (mm) | 2000*1000*80 / 2000*1250*80 / 2000*1500*80 |
Gross Area (m2 ) | 2.00 |
Absorber Area (m2 ) | 1.9 |
Number of covers | 1 |
Cover Material | Low iron tempered textured glass |
Cover Thickness(mm) | 3.2 |
Cover Transmission | >91.7% |
Weight (KGS) | 29 |
Absorber |
Absorber material | Aluminium Plate |
Absorber coating | Anode Oxidation | Black Chrome | Blue Titanium |
Welding | Laser welding/Ultrasonic welding |
Construction Type | Grid type | Grid type | Grid type |
Header Material | Copper TP2 | Copper TP2 | Copper TP2 |
Header pipe | Red copper/ Φ22*0.6*2 PCS |
Riser Material | Copper TP2/CA1220 |
Riser pipe | Red copper/ Φ8*0.5*7 PCS/Φ10*0.5*7 PCS |
Work Pressure | 0.6Mpa |
Test pressure | 1.2Mpa |
Thermal Insulation |
Insulation Material | Fiberglass |
Insulation Thickness | 40mm |
Casing |
Frame | Aluminium alloy |
Frame Colour | Silver/Black |
Back Plate | Galvanized steel |
Sealing Gasket | EPDM |
Packing:
LCL( Less than Container Load ):Wooden case
FCL( Full Container Load ):Export carton
Delivery:
Usually, it is 10 Working days after receiving deposit or original
L/C.
