AWS a5.16 Gr12 ErTi-12 titanium wire welding wire 1.6mm 2.0mm 2.4mm
for filler rod
1.Products information
Grade : ErTi-12
Standard :AWS a5.16 (for welding)
Diameter : hot sale 1.6mm 2.0mm 2.4mm
Shape : Coil & Straight.
Surface : pickling surface / bright surface
Application : welding
Gr12/ErTi-12 need production,lead time 10 working days
| Some more informations about Titanium Wires |
| Finish Type | Available Shapes | Minimum Diameter | Diameter Tolerance | Price Leval |
| Acid Washed | Coil or Straight | 0.2mm | Normal | Lower |
| Polished | Coil or Straight | 0.2mm | Normal | Medium |
| Grinding Polished | Only Straight | 0.8mm | Accurate and can be very small | Higher |
| Common Ti Wires Tolerance |
| Diameter | 0.1-0.3mm | 0.3-0.8mm | 0.8-2.0mm |
| Tolerance | +/- 0.025 | +/-0.04 | +/-0.05 |
| Length | 200-500mm | 500-1000mm | 1000-2000mm |
| Tolerance | +/-1.0 | +/-1.5 | +/-2. |
| Grade | Tensile Strength (min) | Yield strength 0.2%Offset | Elongation in 2in. or 50mm % (min) |
| | Min | |
| Ksi | Mpa | Ksi | Mpa | |
| Gr12 | 70 | 483 | 50 | 345 | 18 |
2.Titanium wire---Three kind of type for your choose
Titanium wire in coil--dia>2.0mm,we can make Coil wire
Coil OD = 450mm,one coil weight is about 10-15kg,or as per
requirment

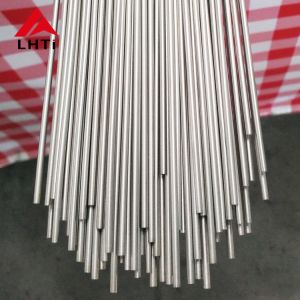

Titanium wire in
straight--dia=0.8mm/1.0mm/1.6mm/2.0mm/2.4mm/3.2mm,length=914mm to
1000mm
90% titanium straight wire used for welding(TIG filler rod)
3.Welding show--titanium wire for TIG and MIG
Titanium Wire is slivery metal with excellent properties. Density
is 4.54g/cm³ lighter than Steel. But mechanical strength is higher
than Steel, 2 times stronger than Aluminium, 5 times stronger than
Magnesium. Pure Titanium Wire is high temperature resistance and
melting point is 1942K.
TIG Welding titanium wire, also known as Gas Tungsten Arc Welding
(GTAW), is a process that joins metals by heating them with an arc
between a tungsten electrode (non-consumable) and the work piece. The process is used with a shielding gas and may also be used with
the addition of filler metal.
The difference between the two is the way the arc is used. MIG (metal inert gas) welding uses a feed wire that constantly
moves through the gun to create the spark, then melts to form the
weld. TIG (tungsten inert gas) welding uses long rods to fuse two metals
directly together
---We have professional welding technology teams that can provide
free welding consultation and other services to our customers.
---If you are not sure what type of titanium wire you need for your
project, we were glad to help you choose the right wire
4.Process
Hot Drawn : Alloy titanium wire except Gr7,when drawn need heating wire ,When the temperature reached 800 degrees Celsius, carries on the
drawing
5.Package & Delivery
---Coil and spool package in carton casse or plywood case
---Straight wire package in Plastic case,outside is standard export
plywood case.
---accept customer requirment
Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.
LHTi to provide partners in various fields with the most suitable and
high-quality titanium wire to ensure that its production quality
continues to improve, whether you use it for the petroleum,
chemical, marine industry or high-end aviation parts and
manufacturing business . No matter how special the material you
need, we are always able to provide all the titanium wire products
our customers need.let me know your need.
More information and any welding question,Please feel free to get
in touch to get more.
