Insulation Panel Portal Frame Steel Structure Warehouse

Portal Frame Steel Structure Warehouse Construction With Modern Insulation Panel

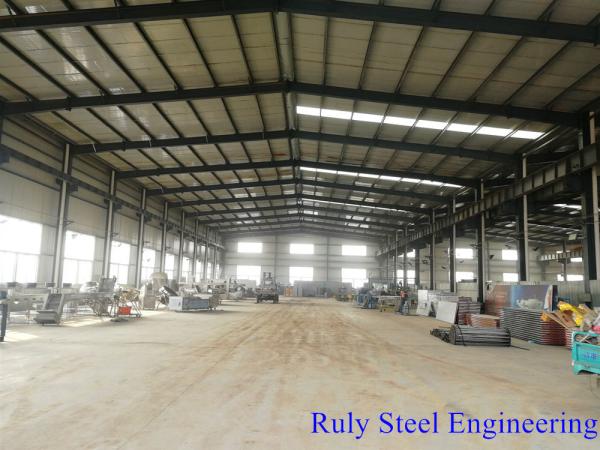

This is a Portal Frame Steel Structure Warehouse Construction With Modern Insulation Panel that is used to process sandwich panel. It has three spans. Each span has one 5T overhead crane. The main steel frame structure is consisted of Welded H-shaped steel beam & columns. The roof and wall panel are Rock wool sandwich panel.

Portal frame steel structure building is widely used as large warehouse, factory, workshops, sheds, garage, hangar, office buildings, bridges, stadiums and other buildings. Portal frame steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. We have special steel structure engineering design department and R & D department, Established an independent and perfect steel structure engineering design, optimization and deepening design system. Establishing engineering material-to-material storage, we not only control the reliability and economy of the structure, but also the types, performance, selection and combination of traditional enclosure materials and new maintenance materials. Our design is not only more applicable, safer and more economical, but also richer in architectural art.

QC/Technical Support

Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate

Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.

Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM

Pre-assembly testing the connection details.

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure Design, Manufacture & Installation.

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own several light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Our products have been exported to Australia, Southeast Asia, South America, Middle East and Africa. In order to serve better for the exported project, we train our engineers and workers to know well about the international design and fabrication technic such as AISC, AWS D1.1, AS4100, and we also have been awarded ISO9001:2008, SGS and BV Certification.

We provide the one-stop service for steel structure project, just tell us your requirement, and we will give you what you need.

Any questions for steel structure, welcome to contact us.
