Function and usage:

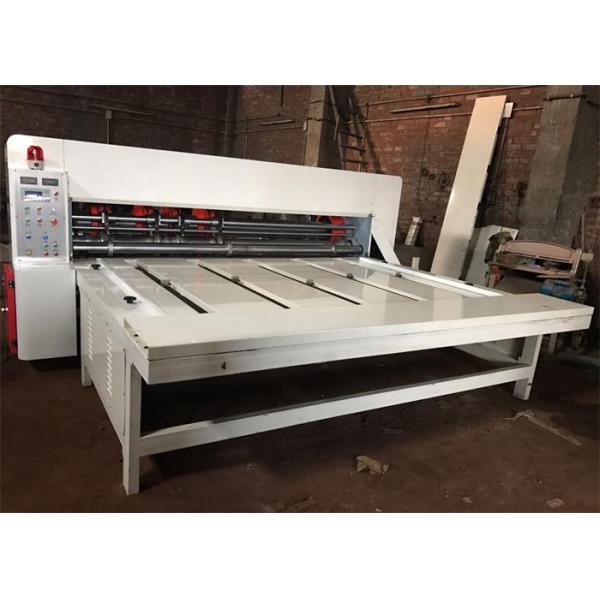

The rotary slotting machine is a combination equipment, it can
perform slotting,corner cutting, slitting, creasing one time, Its main characteristics of hand
feeding single cardboard, all of corrugated cardboard is ok.
Performance features:
Chain feeding, side gauge positioning to ensure paper feeding
accuracy
Planetary gear type 360-degree electric phase adjustment, fast and
convenient
Adopt manual four-tool synchronous adjustment box height,
convenient and quick (optional electric adjustment)
Automatic spray Lubrication Gear to prolong Gear Life
The grooved bottom shaft is designed with a cross slider eccentric
sleeve, which can be adjusted according to the thickness of the
cardboard and the pressure of the upper cutter shaft.
All shaft grinding, hard chrome plating
The slotting cutter adopts high quality 48CrMoand is quenched at
high temperature.
The variable-frequency motor drive, the speed is adjustable, and
the machine is running smoothly
Electronic counter, showing the quantity of production.
Slotted line pressing manual synchronous traverse (electric
optional)
Optional: punch and hole or air hole
Technical parameter
| Model | RS4-B-1222 | RS4-B-1224 | RS4-B-1226 | RS4-B-1422 | RS4-B-1424 | RS4-B-1426 |
| Cutter die diameter | Φ405mm | Φ480mm |
| Max sheet size(mm) | 1200*2200 | 1200*2400 | 1200*2600 | 1400*2200 | 1400*2400 | 1400*2600 |
| Min sheet size(mm) | 350*500 | 350*500 | 350*500 | 400*500 | 400*500 | 400*500 |
| Min slot distance(mm) | 190*50*190*50 | 190*50*190*50 |
| Slot width(mm) | 7mm | 7mm |
| Sheet thickness(mm) | 2-10mm | 2-10mm |
| Work speed (pcs/min) | 0-60 | 0-60 |
| Power (kw) | 3.0 | 3.0 |
| Wall board thickness(mm) | 40 | 40
|
