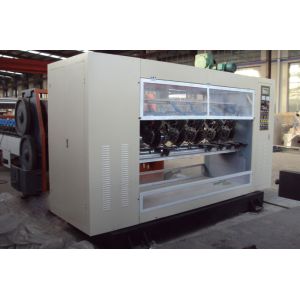

Lifting Type Thin Blade Slitter Scorer PLC 120-150 M / Min Total Power 8.5 KW

BFY - DDP Lifting Type Thin Blade Machine Instructions(PLC)

Uses and Features:

Electric adjustment blade distance

The machine as an important component of corrugated cardboard to perform slitting and creasing,

The overall can be lifting, meet different production line and corresponding to the height of the paper.

The machine is equipped with electric axial displacement device, effective cooperation of paper offset;

Manually adjust the cardboard specifications, simple and practical;

Transmission of the synchronous belt, high accuracy

Thin knife cutting part adopt newly type thin blade high-speed cutting machine, cardboard incision level off is smooth without crashing collapsing; Pneumatic sharpening; this part to achieve production process to be automatic and manual sharpening,

Various frequency speed, the speed encoder get the production speed date by speed measurement wheel .The programmable logic controller (PLC) issued instructions, to adjust the speed of the line pressing motor, for ensure the production line running with synchronous.

Technical parameters

1, Scoring speed: 120-150m/min

2, Max slitting width: 1400mm

3, Max slitting thickness: 11mm

4, The axial displacement: ±65mm

5, Slitting＆scoring composed type:6 blades 10 crease

6, Machine dimension(mm):2700×1100×1850mm

7, Total power:about 8.5KW

8, Weight: About 2500kg

9, Blade diamter:φ200mm(Chengdu of china)

10, Blade thickness: ≤1.3mm

11, Min slitting width:140mm

12, Min scoring width:55mm
