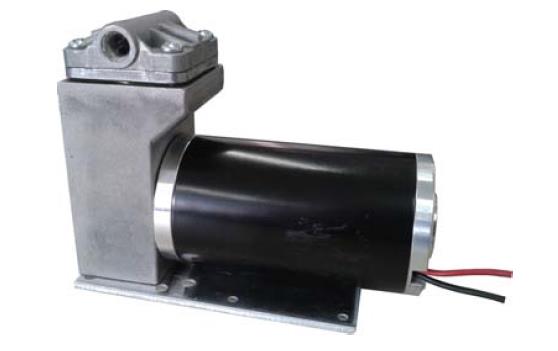

AIRJET^TM High Pressure DC 12V / 24V Electric Air Vacuum Piston Pump KAP-80DC Series -85KPA 7.0Bar 12L/min

特点 Features

• 无油润滑Oil-Free
• 结构紧凑Compact size
• 耐腐蚀性Corrosionresistant
• 长寿命Long life
• 免维护Maintenance Free
• 重量轻Low Weight
• 低噪音低振动Low noise level&vibration
• 低功耗High efficiency
• 可以任何方向安装Can be mounted in any plane
• 直流电机DC Motor

应用 Typical Applications

• 气体采样分析Gas detection devices
• 污水处理Sewage disposal
• 监护仪Patient Monitoring
• 喷绘打印Wide-Format Printer
• 血压计Blood Pressure Monitor
• 生化仪Bio-Chemical Analyzer
• 气压按摩Gas massage products
• 电解质Electrolyte
• 实验室设备Lab equipment
• 美容设备Beauty equipment
• 洗板设备Microplate Washer
• 化学分析Chemistry analysis
• 环境检测Air Sampler
• 真空吸取Vacuum transfer
• 止血带Automatic Tourniquet
• 消毒柜Autoclave

技术参数 Technical Data

• 可以在任何方向安装使用Can be mounted in any plane
• 真空和压力均可applicable as vacuum pump or pressure pump
• 材质:Parts in contact with medium Option
• 泵头Pump head: PPS
• 活塞杯/阀片Piston, valves: PTFE and EPDM

外形尺寸:Dimensions(mm)

Notes of micro air pump

• Do not use this product beyond the limit specified in this specification.
• When using the brushless motor, be noted that the input power should be constant pressure and filtering.
• Keep the inlet and outlet clean and smooth , no solid particles.
• May contain a small amount of water, not solid foreign objects into the pump body.
• In inlet and outlet of the non-clean,please install air intake filters.
• The specification of this product is only for your reference
• The specific details should check the real products.
• Products should be made according to customer’s request within the permitted range.
• Non-professional person should not disassemble this product.
• Long service life at room temperature environment.
• Can supply a variety of certifications according to customer’s requests.
• Please ensure the input voltage meets the specification and make sure the power polarities are connected properly.
• Connect a filter to the inlet to block dust, fiber,water drops when the operational environment is worse.
• Use φ4 silicone tube and Connect a silencer to the outlet for noise reduction purpose.
• Make ventilation holes or slots on the bottom or side of device housing for heat dissipating is strongly recommended.
• Use a piece of thick sponge or foam to wrap the pump for installation would reduce noise and vibration.
• To extend the life time, Suggest to design a control circuit include a pressure sensor to let the pump work in intervals.
• Pack and Store the pump well in clean, temperature and humidity controlled place to avoid rusting of motor.

Application of micro air pump

• Electronic products,agriculture,finishing,light industry products
• Analytic-al instruments
• Chemical and production engineering
• Various ancillary equipment
• Medical Electronics: Blood pressure; negative pressure wound therapy device; oxygen machine; breast pump; the suction machine; ICU monitor; ozone disinfection; etc.
• Household appliance: Vacuum fresh juice machine; coffee machine; automatic tea; fragrance machines; dryers; fragrant Irons etc.
• Health Massage: Massage chair; neck massage; aquarium; beauty device etc.
