Minimum Radius 60Mm Aluminum Spacer Bending Machine For Insulating
Glass Machine
LJZW2020 automatic spacer bending machine is used to bend aluminum
spacer frame for making glass windows and insulating glass. The
spacer bending machine is always used together with desiccant
filling machine and butyl extruder machine. The based function of

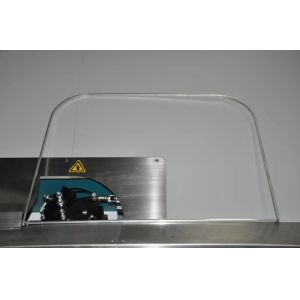

the LJZW2020 spacer bending machine are bending rectangle and other
8 shapes. However, the spacer frame with arc corner is optional
function. There are also other many optional functions to help you
working easily and efficiently.
Optional functions :
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)

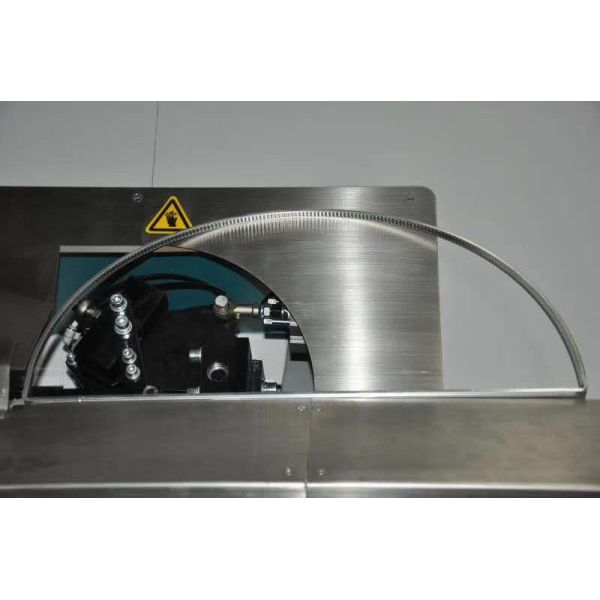

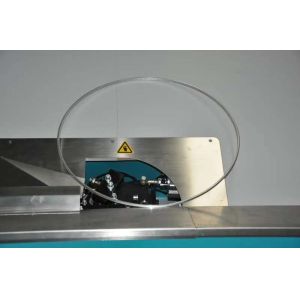

• Using circle wheel device to bend circle frame or frame with
circle corners. Min R60, Max R150, spacer sizes: 6A – 16A).
Different sizes of aluminum bars require different size tools. (Optional)
• 4 groups of storages (2 or 12 groups of storages can be optional)
Main features of the aluminum spacer bending machine:
1. Automatically cutting, feeding and bending aluminum spacers.
2. Continuous bending aluminum spacer.
3. 4 racks for storing different sizes of aluminum spacers.
4. Using Germany siemens PLC.
5. USB function can directly read datas.
6. Automatic framing of large size aluminum frame
7. Automatically avoid the pins of spacers.
Other types of spacer bending machine for warm-edge spacer and
stainless steel bars are customerized by customers' needs.
Technical Data:
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
The aluminum spacers' user in customer's factory:
LIJIANG COMPANY :

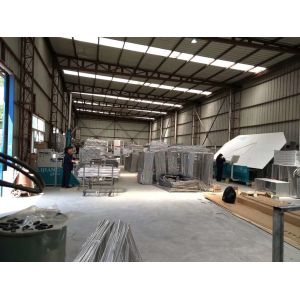

LIJIANG’ new factory covers an area of 20000 square meters, has
more than 100 employees, 6 people with middle and senior technical
titles, 8 full-time technical R & D personnel, 3 production
workshops (welding sheet metal workshop, machining workshop and
assembly workshop) and technical R & D department, and has an
independent international trading company (JINAN KATION). The
production management and sales system of the enterprise adopts the
advanced ERP and CRM management software in China to build an
efficient, accurate, united and orderly high-end team.
Our corporate vision:
To make glass processing simpler and more intelligent, to be a high
cost-effective specialty in the glass machinery industry, to better
feed back and serve our customers, employees and society with
better products and better services, and to make our life better!
