LJTB01 Butyl Extruder Machine
Application
The type of LJTB01 butyl extruder machine is used for spreading
aluminum spacer frames
evenly with hot melt butyl. This equipment use large electrical
control panel which makes
the operation more easier. The conveyor of aluminum is controlled
by frequency converter
and the speed can be adjusted from 0m/min to 47m/min, which has the
fastest speed in
China. It is very popular with energy-saving. Its squeezing system
adopts pneumatic and
hydraulic supercharging system, which makes the squeezing pressure
more stable.
The dispensing cylinder uses vertical rotary support system and it
makes the refill
of butyl easier. It can prolong the life of squeezing system and
set the heating time
in 24 hours with electricity and air pressure.
The distance of squeezing head can be adjusted automatically
according to different aluminum spacer.
The machine has reached the worldwide technology with the
characteristic of complete function and
stable working mode.
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
Equipment details
Equipment details
Clear interface,
Simple operation,
Smart touch screen,
Updated programming.

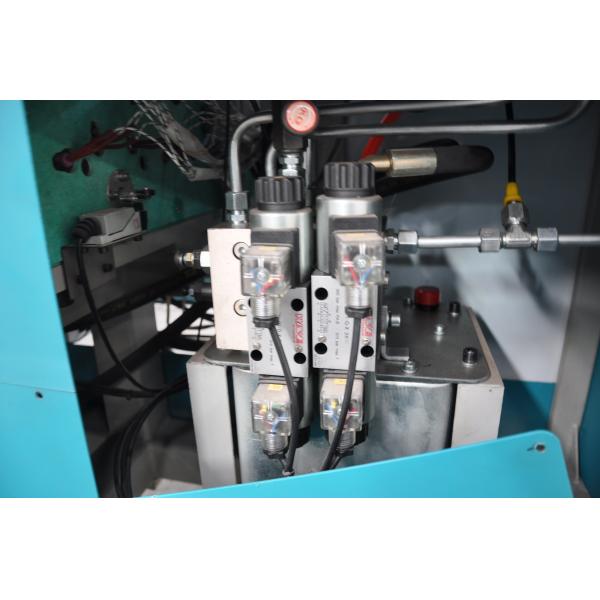

Germany Harvey Valve
Adopt Germany’s Harvey valve,
more stable performance.
Germany Maximator Cylinder
The supercharging system adopts famous
pneumatic and hydraulic cylinder, control the
pressure of outlet oil strongly.
² Other features
1. Filter out debris automatically through auto exhaust, keep
spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing
material automatically.
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and
sales of Insulating glass machinery
and related auxiliary equipment for the glass deep processing
industry and the door and window
construction industry. Has the professional processing basis of
insulating glass machinery,
aluminum-plastic windows & doors machinery and the related
auxiliary materials, etc. In this way,
we provide the most comprehensive glass processing solution and
windows & doors solution for
domestic and foreign customers well.
Until 2019, we exported glass machines and materials to America,
South America, Europe,
the Middle East, India and so on, nearly 30 countries and regions.
We have established a perfect
international business relationship with 10 powerful agents and
made an endeavor together to build
a famous international brand to the world. Kation-Tech,
Lijiang staff style
Customer testimonials
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
