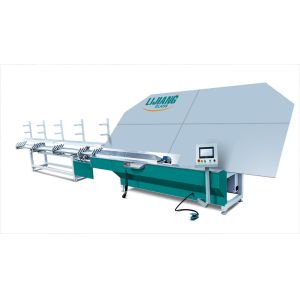

Automatic spacer bending machine LJZW2020
Application
Automatic spacer bending machine is a special equipment for making
aluminum frames of insulating glass
, which replaces the traditional fabrication technology. This
equipment can make a variety of convex polygonal
aluminum frames by one aluminum strip in one time, thus
strengthening the strength of the aluminum frame,
making the sealing effect of the insulating glass more better.
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
² Equipment details
- Adopt Siemens PLC control system
- There are 4 Siemens servo
- Adopt 12 sets of racks which could storage more different sizes of
spacers. Use Siemens servo to change different racks.
- Automatically cut and feed aluminum spacers
- Bend shaped spacer frames continuously
- Automatically avoid the connecting corner while bending and cutting
- The machine grabs the spacer from the top instead of grabbing the
spacer from bottom, solving the old-fashioned
- reversing problem.
- Using industrial computer technology which could realize the
on-site drawing by workers on the industrial
- computer and directly bending the drawn graphics.
- The special machine hand device is used to bend big spacer frame
- We have the special soft system which could avoid the 120mm to reduce waste. For example,
- if the length of the gusset is 60mm, when the program calculates
the right angle, there is a gusset.
- When you start to bend the rectangular frame, you need firstly
transport 120mm, then cut 120mm,
- and then step on the pedal to bend frame, so you will waste the
120mm.
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a
“tree of knowledge”for guiding customer t
o find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
