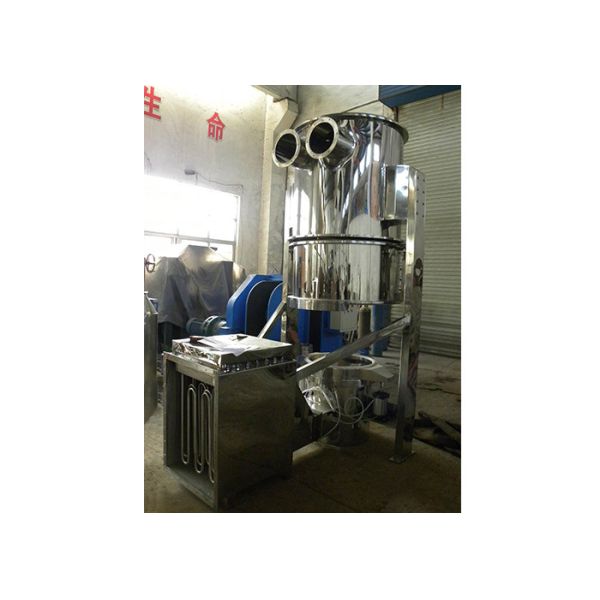

Easy Installation Fluid Bed Granulator , Fluidized Bed Granulator Durable

Main Application

It is widely applied for the capsules granule, tablets and the herb granule

Characteristics

Integrated the processing of mixing, granulating and drying, this machine has the features of high automation, quick granulation and quick drying.

Mono or multi-kinds of powder materials for granulation are to be fluidized within the fluidized bed and to be mixed, and then the bond agent is to be atomized by the special jet gun and to be sprayed on the fluidized interface. Meantime, the powder material is gradually granulized in dry air and the volatilized water content is discharged by blower fan.

1. control cabinet

2. transfusion vehicle

3. Main frame

4. Air heater

5. Medium efficient filter

6. Muffler

7. Air compressor

8. Draught fan

Model		MODEL 5	MODEL15	MODEL30	MODEL60	MODEL120	MODEL200	MODEL300	MODEL500
Capacity	Min (kg/group)	4	10	20	40	80	160	250	350
Capacity	Max (kg/group)	6	20	40	80	160	250	350	550
Raw material vessel volume (L)		22	45	100	220	420	670	1000	1600
Draught fan power	Normal (kw)	2.2	4	5.5	11	15	22	30	37
Draught fan power	Filter and cyclone separator (kw)	3	5.5	7.5	15	18.5	30	37	45
Steam	Consumption (kg/h)	23	42	70	141	211	282	366	450
Steam	Pressure (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Thermal heating power(selected by customer)(kw)		7.0	12	4.5	21	30	47	70	110
Compressed air	Consumption (m3/min)	0.3	0.3	0.4	0.6	0.8	0.9	1.5	2.0
Compressed air	Pressure (Mpa)	0.4-0.6
Working temperature (℃)		Room temperature -120℃ auto adjustment
Water content of product (%)		Mini0.5
Recycling ratio (%)		≥99
Equipment noise (dB)		≤70
Main frame height (mm)		2100	2200	2300	3000	3300	3800	4100

Working Method
