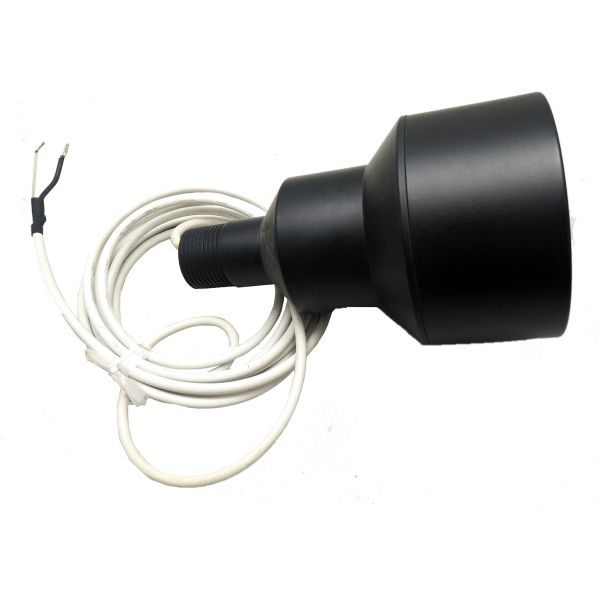

Black PZT Ultrasonic Transducer , 22KHz Ultrasonic Fuel Sensor 105mm x 174mm

Name: Black PZT Ultrasonic Transducer 22KHz Ultrasonic Fuel Sensor 105mm x 174mm
Brand: YUJIE
Price: 1 USD

Add to Cart

PZT Ultrasonic Transducer Of 22KHz Fuel sensor For Lone Distance Measurement

Descriptions:
Housing Material: plastic
Multilayer matching layer technology

Specifications:

Model	KQ22-KH
Center Frequency(kHz)	22KHZ±5%
Bandwidth	2kHz
Sensitivity 0 dB=20 Vp-p；periods:20；Distance:1m	-60dB min
Inspect distance	0.6—30M
Blind zone distance	＜0.6M
Transmitting Beam Angl(-3dBTotal open Angle)	14±2°
Capacitance	5000PF±20%
Minimum derived resistance	300Ω±30%
Maximum drive voltage(2%)	＜4000V
Operating temperature	-20～60℃

Applications:
Depth measuring
Run into a blank wall measuring
Obstacle avoidance

Traffic control

Product Tags:

pzt piezoelectric transducer
