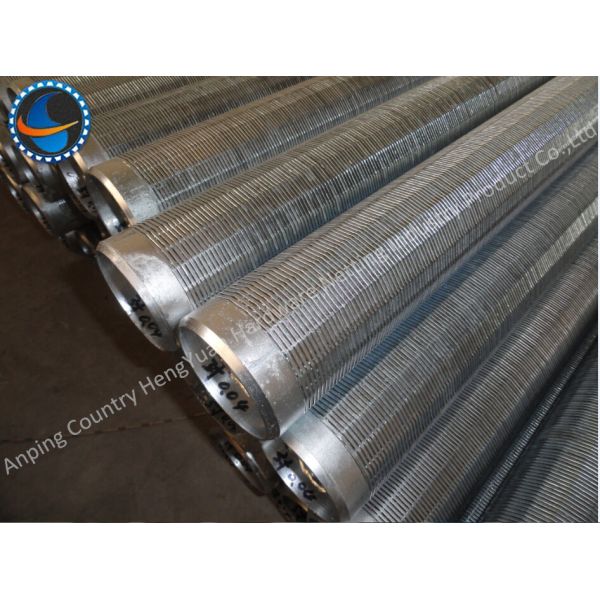

    Point Welding Johnson Vee Wire Screen Wear Resistant With Sealing Bottom

    Ask Lasest Price
    Brand Name : HengYuan
    Model Number : HY-7
    Certification : ISO
    Price : negotiated price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1500 pcs per month
    Delivery Time : according to the quantity
    • Product Details
    • Company Profile

    Point Welding Johnson Vee Wire Screen Wear Resistant With Sealing Bottom

    Sealing Bottom Johnson Vee Wire Screen 3“ 4“ 6“ 8” 10 ”12 ” 14“ 16” Diameter


    Small diameter well screen (sand point) between 25 and 65 mm diameter.

    SS 304 well screen (continuous wire wounded) of diameter 254mm , V shaped slotted type . Open area not less than 20%. Slot width 1mm maximum.

    Large Diameter Stainless Steel 304 Wellscreen , Fitted with Well Casing and thread protectors.
    Construction
    Slot = .020, Material = 304 SS
    Screen length = 5.8M
    Top Fitting = Male thread, NPI,NPT
    Bottom Fitting = Female thread,NPI, NPT

    SIZE
    (inch)
    O.D
    (mm)
    SLOT
    (inch)
    LENGTH
    (m)
    Collapse
    Strength
    (psi)
    Tensile
    Weight
    (ton)
    Wire size
    (mm)
    RODS (mm)
    4114.30.040339562.2*3.03.8mm/22
    4114.30.040339562.3*3.03.8mm/22
    6168.30.040325282.3*3.53.8mm/32
    8219.10.010339910.53.0*5.03.8mm/42
    8219.10.020337010.53.0*5.03.8mm/42
    8219.10.040332310.53.0*5.03.8mm/42
    10273.10.0103206113.0*5.03.8mm/54
    10273.10.0203191113.0*5.03.8mm/54
    10273.10.0403167113.0*5.03.8mm/54

    Product Features:
    1. Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
    2. V-type profile of the structure to avoid clogging and ensure smooth flow.
    3. Continuous long-term effective use of the pore.
    4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
    5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.


    Advantages:
    1. Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
    2. Low cost operation.
    3. Reduce the abrasion of the pump.
    4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.

    If you have any enquires please feel free to contact us !


    Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country ,Hebei Province,China.

    Our mainly products are :stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
