Refrigerator Defrost Heater Refrigerator Finned Evaporator from
China company
1, Al Fin evaporator
We provide both types of fin evaporators, which are pull/push
expanding type and slant inserting expanding type. The evaporators
are applied for refrigerator, freezer, show case, washing dryer……
2, Specific Materials
Tube: Al 1070, Φ8*tmin0.6
Fins : Al 1060, t0.12～0.20
Inlet and outlet tube: copper, TP2MΦ6.0～Φ8.0*t(0.6～0.75), if
lock-ring welding, it’s all Aluminum.
Our products are produced by advanced technology, high speed fin
punching machine, automatic fin aligning and expanding machine,
automatic tube bending machine, helium leakage test machine……
3, Product specifics

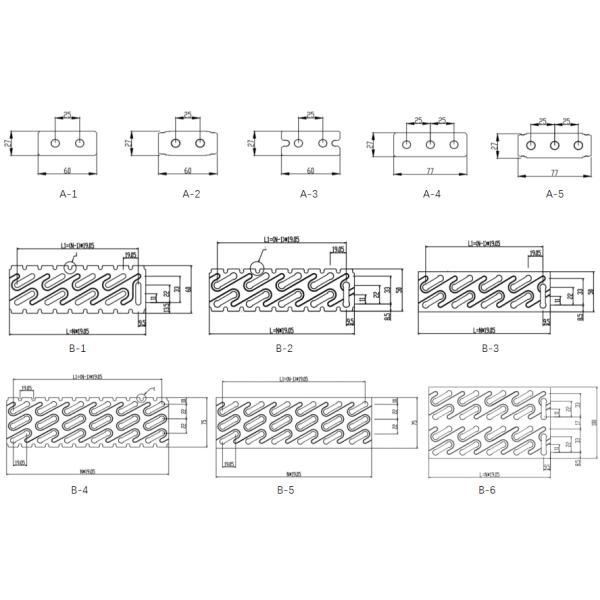

| Evaporator type | fin type | Fin hole (R*H, mm) | Fin size | radius | Slant degrees | Fin pitch |
| L(mm) | W(mm) | (R,mm) | F.P (mm) |
| Pull/Push expanding type | Discontinuous fin A-1, A-2, A-3 | 1*25 | 2 holes: 50/60 | 27 | R15 | 0 | 5/7.5/10/15/20 |
| A-4, A-5 | 2*25 | 3 holes: 77 |
| Slant inserting expanding type | Continuous fin B-1, B-2, B-3 | 2R11*H19.05 | N*19.05 | W50 or 60 | R11 | 30° | 5/7.5/10/20 |
| B-4, B-5 | 3R11*H19.05 | 3 rows: W75 |
| B-6 | 4R11*H19.05 | 4 rows: W100 |
4, Evaporator Assembly
We not only provide the evaporators, but also provide the
evaporator assembly, which including the suction tube assembly,
heater assembly, water drain assembly.
5, Packaging & Delivery
- Selling Units:Single item
- Single package size:23X15X7 cm
- Single gross weight:1.500 kg
- Package Type:General export package: carton box with wooden pallet.
- Lead Time :
Quantity(Pieces) | 1 - 1000 | >1000 |
Est. Time(days) | 10 | To be negotiated |
