    XCMG Road Construction Equipment Width 12.5m RP1203 Road Concrete Paver Machine

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : RP1203
    Certification : ISO CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Unit/Units per Month
    Delivery Time : 30-35 work days
    • Product Details
    • Company Profile

    XCMG Road Construction Equipment Width 12.5m RP1203 Road Concrete Paver Machine

    XCMG Road Construction Equipment Width 12.5m RP1203 Road Concrete Paver Machine


    XCMG Road Construction Machines Pave Width 12.5m RP1203 Road Concrete Paver Machine


    RP1203 paver is a kind of asphalt concrete paving equipment with international advanced technology Level. This product adopts intelligent integrated control technology and has superior control precision and maneuverability; Advanced communication and positioning technology is adopted to realize remote monitoring, fault diagnosis and intelligent services.

    The new console interface is more user-friendly, LCD display operation parameters, and easy to set parameters; M300A mechanical assembly electric heating screed, paving effect has been significantly improved; The patented technology of density automatic control is adopted to improve the uniformity of density, which can be widely used in the construction of expressways and other high-grade highways.


    Specification of Road Construction Machines Pave Width 12.5m RP1203

    ltemUnitRP1203
    Basic Pave Widthm2.5
    Maximum Pave Widthm12
    Maximum L ayer Thicknessmm500
    Maximum Paving Speedm/min18
    Maximum Travel Speedkm/h2.8
    Hopper Capacityt15
    Maximum L aydown Ratet/h1000
    Engine and Type-BF6M1013
    Rated PowerkW/rpm191/2000
    Shipping Dimension (LxWxH)mm6880*3000*3195
    Shipping Weightt23.5
    Full Dimension (LxWxH)mm6880*2720*3950
    Full Weightt32

    Performance Characteristics of Road Construction Machines Pave Width 12.5m RP1203

    1. CAN bus network control system, the integrated intelligent paving management system and a number of invention patent technologies realize the synergy, operation of each system, precise control and meet the construction requirements of high grade highway asphalt layer with high standards.

    2. The compactness automatic control patented technology based on the principle of equal vibration distance is used to improve the uniformity of pavement density.

    3. The lengthened ,type auger bar is configured to ensure the even and stable material level in the auger chute under the condition of large width operation and greatly reduce the segregation.

    4. Equipped with 12 5m mechanical assembled double tamper screed, configured with new XCMG “compound box body type" screed, optimized by, equal vibration strength and reinforcement design of structural rigidity, whole vibration stability is good, high anti-twist ability, good paving evenness and high compactness.

    5. Four sets of independent hydraulic drive system, the material sensing technology automatic control ensures constant material level.

    6. The distribution device can move vertically with hydraulic power assistance to adapt to diversified paving thicknesses and reduce the material segregation and power consumption. 7. The new type material system with super-long. ultra-wide and ultra-low design is suitable for different material vehicles and continuous paving; The patented technology is used to avoid the shock and improve the operation stability.

    8. The control console can visually real-time display all operating parameters of each system, and can be moved to left and right, easy to operate.

    9. Equipped with electronic automatic leveling system, ensuring the evenness of road surface. 10. The standard centralized lubrication system can automatically supply oil uniformly to the bearings of auger and conveyor system.

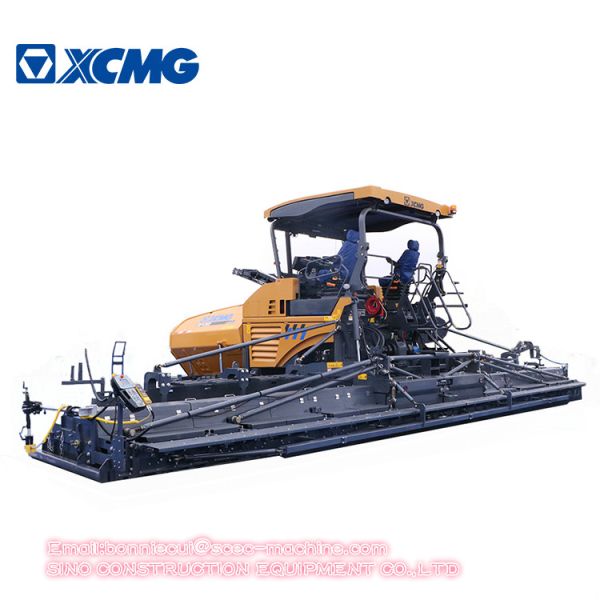

    Product Show
