Face Shield PET Sheet 100w Co2 Laser Engraving Machine Engraving
For Fabric Rubber Plywood Glass Auto Feeding
(Model:PEDK-9060)
►Introduction Of Laser Engraving And Cutting Machine
In response to the current global epidemic situation, in order to
better help front-line medical personnel and personal supplementary
protective equipment, Perfect Laser has launched a Protective Face
Shield PC / PET Sheet Laser Engraving and Cutting Machine, suitable for cutting PC / PET and other anti-fog medical
isolation masks with good specifications.
The protective mask paper cutting machine is equipped with a
high-precision linear guide system and a high-torque synchronous
motor with high cutting accuracy.
On the other hand, the protective mask cutting machine uses a
closed carbon dioxide laser tube, which has high stability and long
life. It has a small light spot and high processing accuracy. It is
the first choice for plastic sheet cutting. The working width and
laser power of the machine can be selected according to your
processing needs, and the machine most suitable for you will be
customized.
►Features Of Laser Engraving And Cutting Machine
1. Personalized customization service: working width and laser
power can be selected according to actual needs, different powers
of 60w / 80w / 100w / 130w can be selected according to different
processing materials, and various configurations are available.
2. Integrated design structure: The main body is made of thick
stainless steel, which has strong pressure resistance, is not easy
to deform, and has an integrated design, which is easy to operate
and maintain.
3. Intelligent offline control surface: support DSP offline control
system, U disk can be directly imported into the file, layer
parameters can be repaired online, and working track can be
dynamically displayed.
4. Strong compatibility: It can be compatible with CorelDraw,
AutoCAD, Photoshop and other software. At the same time, it
supports various file formats, such as BMP, HPGL, JPEG, GIF, TIFF,
PCX, TAG, CDR, DWG, DXF.
5. High cutting accuracy: equipped with high-precision metal guide
rails, stepper motors and honeycomb platforms, which can meet the
requirements of high-precision operation.
6. Water cooling and water shortage protection system: equipped
with water cut protection and cold water circulation system, which
can ensure that the cold water in the laser tube is clean and
dust-free, prolonging the service life.
►Details Of Laser Engraving And Cutting Machine

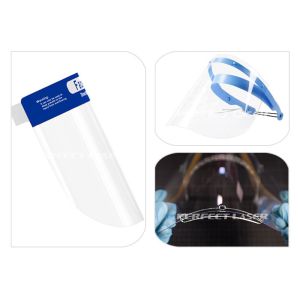

►Face Shield Producing Process Of Laser Engraving And Cutting
Machine
►Application Of Laser Engraving And Cutting Machine
Applied Materials:
Applicable to marking of most non-metallic materials, such as PC,
PET, PVC, wood, bamboo, rubber, leather, cloth, organic glass,
acrylic, glass, crystal, ceramics, stone, double-color board, etc.
Applied Industrial:
Widely used in advertising industry, gift processing, packaging
industry, leather processing, seal engraving, product marking and
many other industries.
►Samples of Laser Engraving And Cutting Machine
►Technical Parameters Of Laser Engraving And Cutting Machine
| Model | PEDK-9060 Laser Cutting And Engraving Machine |
| Laser Power | 60w / 80w / 100w / 130w |
| Engraving Area | 900×600mm |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-10000mm/min |
| Repeating Location Accuracy | ±0.0125mm |
| Working Voltage | 220V ±10% 50HZ |
| Machine Power | 900w |
| Controlling System | CNC professional controlling system |
| Supporting Graphics Formats | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF |
| Cooling Mode | CW-3000 Water Chiller with protection function |
| Auxiliary Devices | Exhaust fan & exhaust pipe |
| Cutting Platform | Professional honeycomb / strip work table |
| Power Control Mode | Laser power and moving system cooperate |
| Control Software | Original Perfect Laser laser engraving and cutting software |
| Machine Size | 1400*960*1150mm |
►Packaging & Delivery Of Laser Engraving And Cutting Machine
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
4. Sophisticated and professional logistic agent.
►Competitive Advantages Of Laser Engraving And Cutting Machine
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick
delivery.
