    Energy Saving Notebook Making Machine With Spine Taping Easy Operation

    Ask Lasest Price
    Brand Name : CWH
    Certification : CE
    Supply Ability : 1 Set/Sets per Month
    Price : negotiable
    Payment Terms : L/C, T/T
    Model Number : AFPF-1020C-P3
    • Product Details
    • Company Profile

    Energy Saving Notebook Making Machine With Spine Taping Easy Operation

    Energy Saving Notebook Making Machine With Spine Taping Easy Operation

    Machine production process

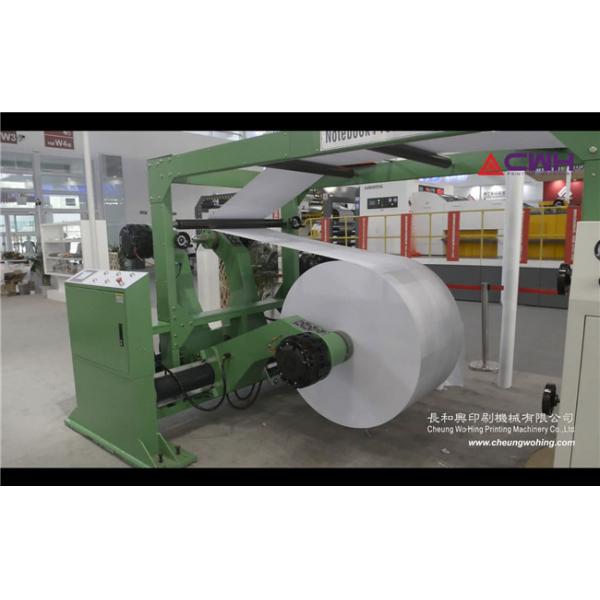

    1. roll to sheets

    2. water base flexo pritning

    3. perforation

    4. slitter

    5. folding

    6. sheeter

    7. pages collator

    8. auto cover feeder

    9. auto page inserter feeder

    10. cold glue padding

    11. drying conveyor

    12. spine tapping application

    13. drying conveyor

    14. face trim

    15. both sides and 3rd/4th trim

    16. receiving table


    Machine specification

    Max. reel paper diameter1400mm
    Reel paper widthMax.1040mm Min.550mm
    Printing-cutting lengthMax.780mm Min.520mm
    Printing color3c+3c ( 3 colors on both sides)
    Max. machine Speed

    350 m/min

    (Depend on paper thickness and material)

    Number of sheets per group20-120 sheets after folding
    Inner paper thickness55 - 120 gsm
    Number of sheets group2 groups
    Max.production speed40 strip/min ( 20 strip*2)
    Max.number of notebook group3 ups
    Endpaper thickness80 - 150 gsm
    Cover thickness150 - 450 gsm
    bottom / top Cover lengthMax.780mm Min.520mm
    bottom / top Cover widthMax.260mm Min.148mm
    Max.cover pile height800 mm
    Notebook back tape lengthMax.780mm Min.520mm
    Notebook back tape WidthMax.260mm Min.148mm
    Paper tape widthMax.35mm Min.20mm
    Frontal trimming WidthMax.780mm Min.520mm
    Frontal trimming LengthMax.260mm Min.148mm
    Frontal trimming thickness3 - 10 mm
    Total Power69KW 3phase 380V ( or depend on buyer's request)
    Net weight34t
    Machine dimension25 x 10 x 2.1 m

    Equipped With
    No.NameQty
    1Printing roller6 pcs (installed in machine)
    2Double side tape2 rolls
    3Water Ink40 kg
    4Paper Tape10 rolls
    5Cold Glue20kg

    Details image

    Printing Unit (3 color on double-face)
    The 6-group metal webbing distributor rollers structure in printing section realizes three-color

    on double sides.The core shaft up & down are controlled by hydraulic ram. Use timing belt is

    used to ensure printing accuracy. Regulator eccentric roller manually, printing roller operating

    button, water ink fexographic printing unit.

    Perforating & slitting

    CNC liner dovetail groove structure is adopted so it is very convenient to adjust the size of

    notebook. Imported blades are the first option to ensure they are durable and reliable.

    The Back Cover/Title Feeder
    It ensure 50-300g paper to run stable at high speed. Also it need not worker management

    since automatic alarm when machine breakdown, as a result, it saving the labor resource,

    reduce the machine working time when stop for replace outer and improve the work effect

    of the whole production line.

    Master Operational Console
    Famous brands in Europe control components are adpoted, such as German Siemens PLC,

    German Siemens motor, frequency transformer and servo driver, French Schneider Low

    Voltage eletrical apparatus.

    The Cover Separation Device
    The cover separation device is in the front of the glue conveyor, adpoted the mini-cylinder and

    pneumatic sucker sucks the back cover and cover page and synchronized with the rubber chain.

    After entering the guide groove, the sucker returns by the pen-type linear cylinder to complete

    the layout of a cluster block.
    The groove-shape guiding groove enables raliable isolation among the top cover page and the

    buttom cover page and inner pages, and appropriate amount of side coating on the back of the

    buttom cover page, the cover page and inside of pages.


    Our Services

    1. Pro-sales services:

    • We could make some changes in our machine according to your requirements.
    • We could introduce the reliable sub-material supplier for you.
    • We could offer you all necessary spare parts in shortest time.
    • We could share how to set up your factory and production line.

    2. After-sales services:

    • We could arrange our engineer to your company for machine installation, training,maintaince and re-installation.
