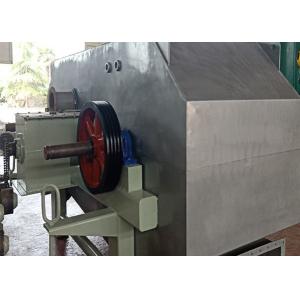

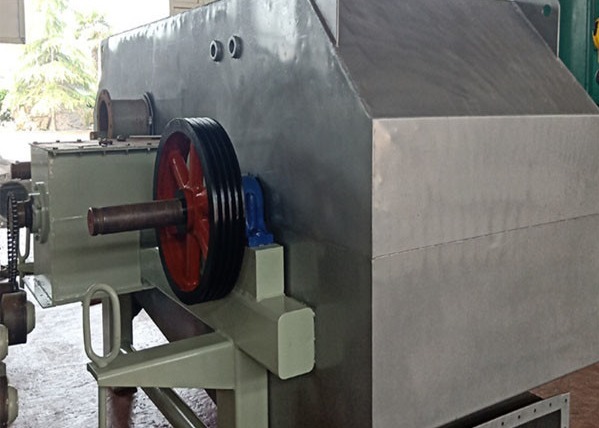

High Speed Pulp Washer Equipment For Paper Making
Type: Pulping Equipment
Computerized: Yes
Voltage: 220V
Power(W): 5.5KW
Dimension(L*W*H): Configuration
Weight: 500kg
Certification: ISO9001:2008
Product name: Pulp Washer
Control system: PLC System
Quality: Top quality
Customized: Accepted
Service time: All life
Raw material: Stainless Steel
Application: Paper making pulp equipment
Color: Customized
Feeding content: 0.3-1%
The consistency of pulp leaving: 8-12
After-sales Service Provided: Engineers available to service
machinery overseas
1
first:
Product Profile:
High speed pulp washer is a washing equipment used in paper making
industry in China, on the basis of advanced foreign technology,
successfully developed a new type of Deinked pulp washing
equipment.
Complete machine adopts full closed-end structure, stainless steel
shell shape can replace the condenser and the inclined screw
thickeners, simplifies the process and reduces costs.
Application:
It is used for washing and thickening in waste paper pulp
processing.
Performance characteristics:
The advanced equipment manufacturing, high degree of automation.
Single machine can realize the size change from low concentration
to high concentration, concentration, ash removal efficiency high,
washing efficiency; to efficiently remove ink, fillers and other
tiny impurities, improving the whiteness of the pulp. Due to the
simple structure, small size, high efficiency, Deinked pulp
processing system has been widely used in.
the second:
Product Profile:
It is used washing and thickening in waste paper pulp processing
Features:
Pressure type guniting , pulp thick and well-distributed
High speed ,twinver com-press, pulp dewatering fast , high rate ash
removal.
Equipped automatic correction device ,adopted eletromagnetic motor
speed control ,easy operation and working safety
the third:
Product Profile:
High Speed Pulp Washing Machine is a new generation of washing and
concentrating equipment. It can not only wash, but also
concentrate, high efficiency of impurity removal and dehydration
effect, obvious water-saving effect, especially suitable for waste
paper deinking pulp and concentration.
Features:
The equipment has high deinking efficiency for small impurities
such as ink ions and filler, etc. It can be widely applied to the
washing and concentration of recycled pulp for waste newsprint,
waste books and periodicals.
The fourth:
Application:
it is able to wash and thicken waste paper pulp efficiently through
the centrifugal force generated by the high speed rotation of
rubber covered roller, as well as the extrusion force between the
roller and the net.
Features:
high washing efficiency, small floor coverage, easy installation
and operation, rarely fiber waste
| Type | HT-4025 | HT-4525 | HT-5030 | HT-5530 | HT-6030 |
| Filtrating area: m2 | 40 | 45 | 50 | 55 | 60 |
| Consistency of inflow pulp: % | 0.5-1 |
| Consistency of outflow pulp: % | 4-6 |
| Capacity of product: | Rich-wheat-straw pulp: t/d | 40-60 | 45-67 | 50-75 | 55-82 | 60-90 |
| Mixed waste paper: t/d | 60-80 | 67-90 | 75-100 | 82-110 | 90-120 |
| Reed pulp: t/d | 80-100 | 90-112 | 100-125 | 110-137 | 120-150 |
| Chemical wood pulp: t/d | 120-140 | 135-157 | 150-175 | 165-192 | 180-210 |
| Power of motor: kw | 15 | 18.5 | 22 |
