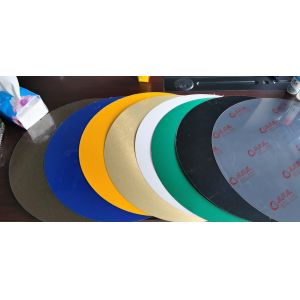

    Plain H12 Prepainted Aluminium Sheet For Exterior Wall Panel

    Ask Lasest Price
    Brand Name : Dingang
    Model Number : Dingang - PPAL
    Certification : SGS,ITS,BV
    Price : Negotiable
    Payment Terms : T/T,L/C
    Supply Ability : 5000 Tons / Per Month
    Delivery Time : Within 35 Days After Order Confirmed And Down Paymetn Received
    • Product Details
    • Company Profile

    Plain H12 Prepainted Aluminium Sheet For Exterior Wall Panel

    PVDF Paint Plain Pre-Painted Aluminum Coil/Sheet Ral Color Coating Aluminum Plate Used For Exterior Wall Panel


    Description of prepainted aluminium :
    Color coated aluminum ( prepainted aluminum ) , which is produced with aluminum sheet or coil and processed by coating with color or pattern.
    In common sense,here are two kinds of coating PVDF and PE.Compared with other section steel prepainted aluminum coil is the more popular material , because of its excellent property. Firstly the property is very stable so the surface is erosion resistant , warranty could up to 30 years long after special treatment.Then,the density is the lowest among metal material when volume is fixed.

    Good adhesion is between coating and substrates.Its easy to process and form,has nice durability and outdoor stability.Anticorrosion effect could last for 20 years,and various bright colors are offered to select.



    Specifications :

    Alloy : AA1060,1100,3003,3004,3105,5052 and etc
    Temper : H16 / H18 / H22 / H24 ( All According Customers' Requirement )
    Standard : ASTM,JIS,DIN,EN,ISO,GB And Etc
    Thickness : 0.20 mm - 2.5 mm
    Width : 30 - 2650 mm
    Thickness Paint Layer : ( PVDF ) more than 25 micron ; ( PE ) more than 18 micron
    Interior Diameter : 405 mm,505 mm,150 mm etc
    Color : Ral Color Code Or As Per Clients Requirements And Sample
    Coating Hardness : More Than 2H ( pencil hardness )
    Impact Resistance : No Cracking And Peeling ( 50kg / cm , ASTMD - 2794 : 1993 )
    Flexibility ( T-bend ) : No More Than 2T
    MEK Resistance : More Than 100


    Paint Performance of prepainted aluminium:

    Test ItemPaint
    PVDFPE And Others
    With VarnishWithout Varnish
    Paint Film Thickness , μ≥ 22≥ 30≥ 18
    Shine ToleranceShine ≥ 80 Unit , ± 10 Unit Allowed
    Shine ≥ 20-80 Unit , ± 7 Unit Allowed
    Shine < 20 Unit , ± 5 Unit Allowed
    Pencil Hardness≥ 1H
    Abrasion Resistance, L/μm≥ 5--
    T-bend≤ 2T≤ 3T
    Impact Strength50KG . CM Without Depainting And Crack
    Adhesive Force ( Class )≥ 1
    Boiling Water ResistanceUnvarying
    Chemical ResistanceAcid EnduranceUnvarying
    Alkali StabilityUnvarying
    Oil ResistivityUnvarying
    Resistance To Solvent≥ 70≥ 50
    Scrub Resistance≥ 10000 Times Unvarying
    Dirt Resistance≤ 15 %--
    Salt Spray Resistance ( class )≥ 2 class--

    Coating Production Line:


    Packaging:

    Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)



    Plain Pre-Painted Aluminum Coil/Sheet Application:

    Building roofing,exterior wall panel,decorative sheet,roller shutter door,household appliances and etc.
