RTV2 transparent Liquid silicone rubber molding for jewelry
jewellery resin mold make
Features:
RH6250 - Liquid Silicone Rubber has the characteristics of samll
deformation value, high tear resistance, high transparent and high
yellowing resistance.Increased temperatures reduce the pot-life.
The pot-life of the mixture of the two components at 20℃ is 12
hours.
Application:

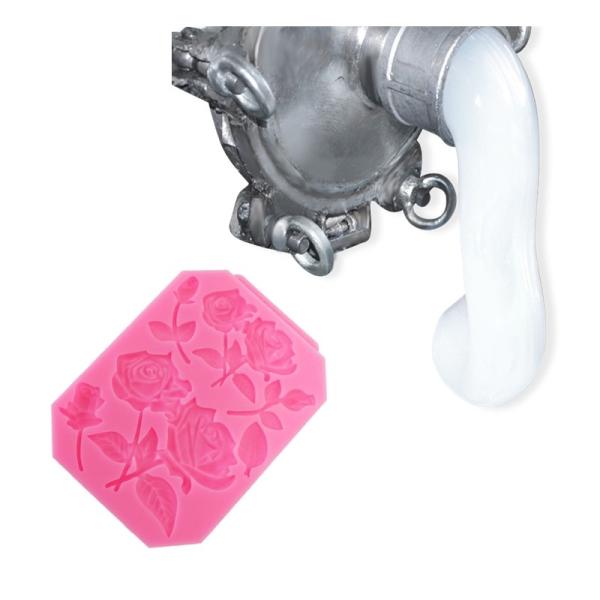

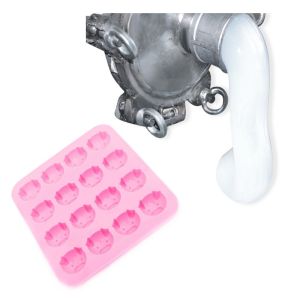

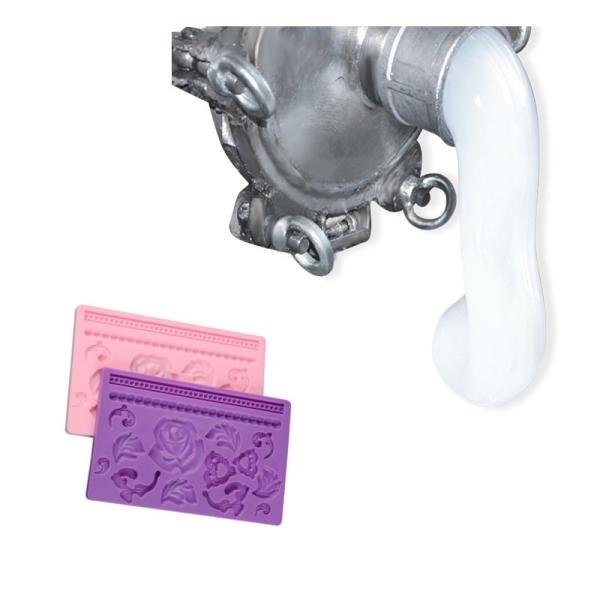

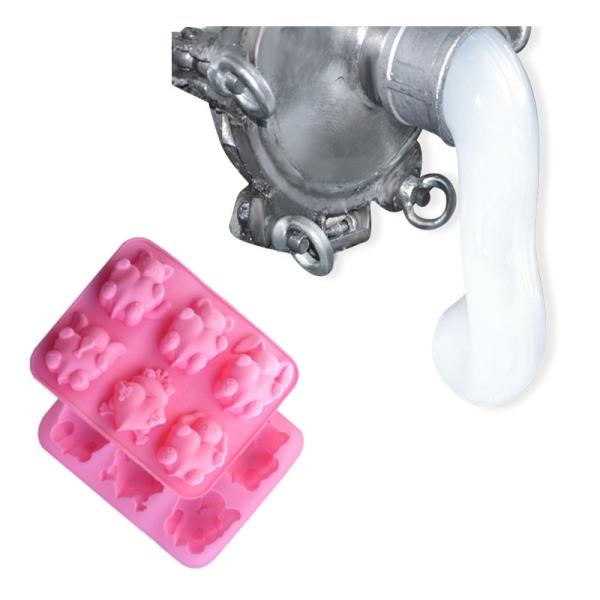

Suitable for producing high precision & high transparent silicone
rubber mold.
| Test items | Appearance | Viscosity | Hardness | Density | Resilience | Tensile Strength(MPa) | Elongation at break | Tear strength(KN/m) | Tensile set(%) | Line shrinkage |
| Testing standard | Visual inspection | DIN53019 | GB/T531.1 | GB/T1533 533-2008 | GB/T1681 1681-2009 | GB/T528 | GB/T528 | GB/T529 | GB/T528 | CGB-T14235.4 |
| Unit | / | Pa.s | ShoreA | g/cm³ | % | MPa | % | KN/m | % | % |
| RH6250-10A/B | Transparent | 500 | 10 | 1.07 | 20 | 1.5 | 750 | 5 | 4.3 | 2.5 |
| RH6250-15A/B | Transparent | 600 | 15 | 1.08 | 45 | 3.5 | 850 | 9 | 3.4 | 2.7 |
| RH6250-18A/B | Transparent | 600 | 18 | 1.08 | 50 | 5 | 800 | 12 | 3.4 | 2.5 |
| RH6250-20A/B | Transparent | 800 | 21 | 1.09 | 50 | 6.5 | 800 | 15 | 2.6 | 2.4 |
| RH6250-30A/B | Transparent | 1000 | 30 | 1.1 | 55 | 7 | 700 | 15 | 2.6 | 2.4 |
| RH6250-40A/B | Transparent | 1200 | 40 | 1.11 | 55 | 7.5 | 550 | 25 | 2.6 | 2.5 |
| RH6250-50A/B | Transparent | 1200 | 50 | 1.12 | 65 | 9 | 550 | 30 | 1.7 | 2.6 |
| RH6250-60A/B | Transparent | 1500 | 60 | 1.12 | 60 | 9.5 | 500 | 35 | 1.7 | 2.6 |
| RH6250-70A/B | Transparent | 2000 | 65 | 1.13 | 55 | 9.5 | 400 | 30 | 0.8 | 2.5 |
| RH6250-71A/B | Transparent | 2500 | 70 | 1.13 | 55 | 9 | 350 | 25 | 0.8 | 2.5 |
Precautions
· Store in a cool dry place out of direct sunlight, use it within
12 months from the day of manufacture.
· Contacting compounds containing N, P, S, Sn, and Pb during
storage and use may cause poisoning of the platinum catalyst and
affect vulcanization.
Packing Specification
· It is available in 20KG/bucket and 200KG/bucket
Remarks: Vulcanization conditions:
· Typical data are average data and actual values may vary. Typical
data shall not be used as product specifications.
· Vulcanization conditions: A/B is evenly mixed, 140mm*120mm*2mm
mold 175°C*5min compression molding;
Advantages
1) Environmental protection/non-toxicity, FDA food grade silicone
2) High viscosity, not easy to penetrate
3) Can set color (multi-layer color), do not fall off when set
color, pattern is not single, can form different patterns, silicone
printing trend leads the fashion field.
4) Various effects can be printed (bright or matte, round or
right-angled effect, thick or thin, large or small patterns),
strong stereoscopic effect, soft handle and strong adhesion.
5) High wear resistance, brightness and wash-ability
6) Can firmly adhere to the surface of textiles, non-woven fabrics,
dermis, imitation leather and other materials.
7) The effect of wool pressing is good.
8) Solve the problem of firmness of leather and waterproof fabric
effectively
9) Printing gloves, clothing, paper, sports goods, etc., cold and
heat resistance, skid resistance, silk-printed patterns have a
strong three-dimensional feel, and feel soft, and complement each
other with textiles or leather goods; silk-printed patterns also
have excellent peeling strength, wear resistance, brightness; it
also has water-proof, skid-proof, breathable, high resistance, low
temperature. And good leveling.
10) Super elasticity, in the normal range of elasticity of the
fabric does not fall off, cracking. Printing patterns do not
decolor, do not re-dye (not sublimate).
11) Good air permeability, outside water, oil and other pollutants
can not enter, while the inside of the hot air can be permeable.
