OUCO FULL AUTOMATIC DISPOSABLE MASK MAKING MACHINE

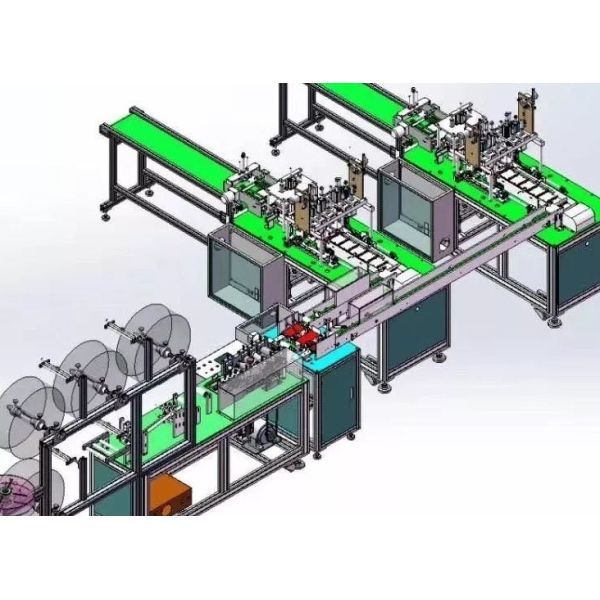

This machine is fully automatic face mask machine.
A body machine and machine to connect two ears.
After the machine output mask ontology ontology by the conveyer
belt structure to flip the mask body slice institutions, through
the flip agencies will face mask plate flip to connect the ear
machine conveyor belt, again through the conveyor belt to mask the
ear piece to the front of the machine above the first mask plate,
finally through the cylinder down the mask onto mask ear machine
disc, follow-up by ear masks the ears of the belt welding machine
is complete, and actions, such as ear wearing surgical masks to
complete a product.
The machine adopts PLC, touch screen control, the main conveyor
belt adopts single-phase motor transmission, stepping motor
turnover, accurate transmission, stable control, adjustable speed.
Advantages and characteristics of the production line:
1. Small size, small footprint, aluminum alloy structure,
beautiful, strong and rust-free
2. High stability, low failure rate and good accuracy.
3. Computer PLC programming control, servo drive, high degree of
automation.
4. Photoelectric (optical fiber) testing raw materials, avoid
mistakes
5. The camera is a dual-machine mask, compared with the
single-machine mask machine, high efficiency, with automatic
packaging line, greatly save manpower and material resources.
Plant installation requirements:
1. Ground load bearing: less than or equal to 500KGS/ m2.
2. Working power :220V+/ -5%, 50Hz, rated power about
15KW(including packaging machine)
3. Operating environment: temperature 10-35 degrees, humidity
3-35%HR, no flammable corrosive gas, no dust, sterile workshop.
4. Compressed air: 0.5-0.7mpa, using flow rate 300L/ min
Overall size(mm) | 6800*3800*1900 |
Ply: | 3 Ply Mask |
Mask size(mm): | 95*175 |
Materials: | Spunbond Nonwoven+Meltblown Nonwoven+Spunbond Nonwoven |
Capacity(pieces/min): | 90-110 (140,000pcs/day) |
Compressed air(Mpa): | 0.4-0.7 |
Power(Kva): | 10 |
Operator: | 1person |
Main technical parameters
| Overall dimension | Length: 6500mm
Width: 3500mm
Height: 1950mm |
| Operating height | Ground to work table height: 850mm (adjustable) |
| Voltage | AC 220V, 50HZ, 6000W |
| Working air pressure | 0.5~0.7Mpa, dry gas source Φ12mm |
| Air consumption | 250 L/min |
| Vacuum | Equipped with vacuum pump, can be connected to customer vacuum
source <-75kpa, 250L/min |
| Condition requirement | Clean room Class 10 or less |
Professional design team
All machine parts we have designed by the solidworks, and designed
automatic, only need one person operate the machine. Which help the
manufacturer save the cost.
Professional manufacture team
We have the profession team for the machine fabricating and
assembling. also all materials choose the GB stand aluminum plate
and SS 304 steel. All electronic elelments choose the international
brand.
Test work for all machine
Before delivery, we will make all prodution test for the whole
machine, which to make sure no problem when customer get the
machine.
