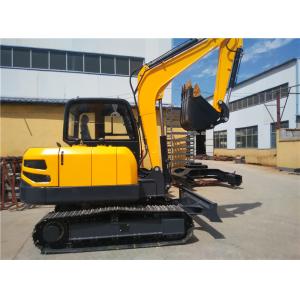

    6.5 Ton Steel Track Small Ditch Digger Excavator Small Size With Kubota Engine

    Ask Lasest Price
    Brand Name : Wenyang Machinery
    Model Number : WY65H
    Certification : ISO ,CE
    Price : 15000 USD-25000 USD
    Payment Terms : T/T, Western Union,
    Supply Ability : 800 sets/year
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    6.5 Ton Steel Track Small Ditch Digger Excavator Small Size With Kubota Engine

    China 6.5ton steel track digger cralwer excavator with Kubota engine


    >> MAIN FEATURES:

    ▲The crawler excavator is an economic type excavator ,which matched KUBOTA tier III engine with strong power and low noise and environment protection feature.

    ▲Fitted imported brand main pump and valves and driving motor and slewing motor.

    ▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator, ensure the machine have high working efficiency .

    ▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .

    ▲The breaking pipeline equipped improve the working performance .

    ▲Installed luxury full seal cabin with A/C and LCD display etc.

    ▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.


    >> MAIN CONFIGURATION:

    NODESCRIPTION

    1

    1-KUBOTA V2607 engine , 42.4kw/2000rpm, tier III, turbocharged

    2-REXROTH brand pump and HUSCO valves

    3-EATON slewing motor and driving motor

    4-Luxury full seal cabin with A/C and LCD display and LED lights etc.

    5-Hydraulic pilot servo operation system

    6-Steel track :400mm

    7-With broken pipeline system and hydraulic oil radiator

    8- Bucket capacity: 0.21m³

    9-Istalled dozer blade

    10-Travel speed: high speed and low speed

    2

    OPTIONAL ACCESSORIES:

    1-Auger

    2-Breaker

    3-Log grapple


    MAIN TECHNICAL PARAMETER

    MAIN SEPCIFICATIONS
    Bucket capacity0.21m³
    Swing speed0~11 rpm
    Max. gradeability35°
    Max. Bucket digging force48KN
    Max. Arm digging force35KN
    Engine modelKUBOTA V2607
    Power /Rotation speed42.4kw/2000rpm
    Hydraulic system pressure28Mpa
    Travel speed2.0~3.5km/h
    Operation weight6500kg
    MACHINE SIZE
    Overall dimension (L*W*H)5940mm*1880mm*2570mm
    Height of cabin2600mm
    Axle base(Track length on ground)1990mm
    Track gauge1480mm
    Min.Ground clearance353mm
    Swing radius at tail1689mm
    Track width400mm
    WORKING RANGE
    Max. Digging height5499mm
    Max. Dumping height3845mm
    Max. Digging depth3808mm
    Max. Vertical digging depth2983mm
    Max. Digging radius6128mm
    Min .swing radius2607mm
    Max. Lifting height of blade376mm
    Max. Cutting depth of blade474mm
