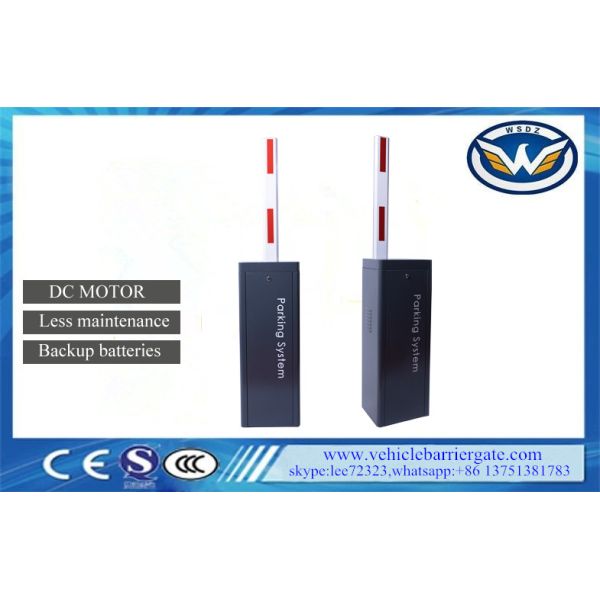

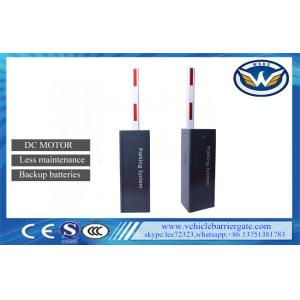

DC Parking Barrier Gate Parking Entrance Barrier Adjustable Speed
Parking Barrier Gate Technical parameters
1 Parking Barrier Gate Working temperature(motor): -35℃~+85℃
2 Parking Barrier Gate Rated voltage: DC24V
3 Parking Barrier Gate Running speed:1.5s-8s
4 Parking Barrier Gate Rated current: 8.58A
5 Parking Barrier Gate Rated power: 140W
6 Parking Barrier Gate No-load speed:1850rpm
7 Parking Barrier Gate Rated speed:1400rpm
8 Parking Barrier Gate Output Power: 56.8N.m
9 Parking Barrier Gate Relative humidity: ≤90%
10 Parking Barrier Gate Remote control distance: ≤100M( in the open place)
11 Parking Barrier Gate IP Degree: IP44
12 Parking Barrier Gate Max length of arm: 6M
Parking Barrier Advanced Functions
Anti-collision protects the boom arm. |
| It will protect the boom arm not to being damaged once the arm
collides with a vehicle. |
| Safety--- Anti-hit by pressure resistance bounce |
| While moving down, the Parking Barrier Gate boom arm will immediately go back to its vertical position once it
is obstructed by an imposed force, which protects the vehicle or
person not to being hit by the boom arm. The sensitivity is
adjustable. |
Parking Barrier Gate Features
1 The Parking Barrier Gate running speed can be adjusted from 1.5s to 6s
2 The Parking Barrier Gate can be quickly interchanged
3 Open the barrier gate by the motor wheel when power is off, and
automatically reset it after power on
4 Curved crank arm three-link movement structure, the operation is
stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment, with wire
control(must be switch signal)
The parameter for selecting the balance tension spring
| Parking Barrier Gate Arm Type | The Length of the arm | Selection Spring |
| | Type
| Spec.(diameter*Length) |
| Straight Arm/Folding Arm | 6M≥L＞5M | Extension Spring | (ø5.5x280)+(ø4.5x280) |
| 5M≥L≥4.5M | | (ø5.5x280) |
| 4.5M＞L≥3M | | (ø4.5x280) |
| Fence Arm | 5M≥L≥4M | | (ø6.5x280)+(ø6.5x280) |
| 4M＞L≥3M | | (ø5.5x280)+(ø4.5x280) |
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes, the standard advertising barrier gate has a loop detector and
pressure sensor.
2-How about the guarantee and after-sale service?
We have a 1-year quality guarantee, We own well-trained and
passional sales & aftersale services who can speak fluent English
language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special items, or need a custom design package or logo, need
3-10 working days longer.
4-How about the payment terms?
TT, Western Union, our company already joined the trade assurance,
it will highly protect your order security.
5-How do you send the products to me, how long?
As our products are big volume and heavy duty, we suggest you ship
by sea. You can also choose your shipping forwarder. It normally
takes 7-60 days depending on different countries.
6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there are wooden crate
packages.
