Product Description
Fan and pad greenhouse air cooling system
The preferred cooling method for a greenhouse is through evaporative cooling. Evaporative cooling is the process of having particles of water evaporate, which leads
to a drop in temperature through increased humidity.
Cooling System
Cooling Pad For Poultry Farming or Greenhouse
Cooling Pad, also called wet pad, made of hydrophil kraft paper, is
mainly used for the cooling system, humidification system and
filter system. The process includes gluing, drying, corrugating,
shaping, solidifying, cutting and polishing. Common specifications
are 7090, 7060 and 5090 with 45 * 45 angle. Special sizes or
dimensions need made or required individually. Water Evaporative Cooling Pad is widely used for
greenhouse,industrial workshop...etc, having good effect on ventilation normally equipped with exhaust
fan.
| H: high W: width D: depth H: wave height α: wave angle β: wave
angle |
| Item | 7090 | 7060 | 5090 |
| H (mm) | 1500 / 1800 / 2000 and so on | 1500 / 1800 / 2000 and so on | 1500 / 1800 / 2000 and so on |
| W (mm) | 600 / 300 | 600 / 300 | 300 / 600 and so on |
| D (mm) | 100 / 150 or as requirment | 100 / 150 or as requirment | 50 / 100 / 150 or as requirment |
| h (mm) | 7 | 7 | 5 |
| α (mm) | 45 | 15 | 45 |
| β (mm) | 45 | 4 | 45
|

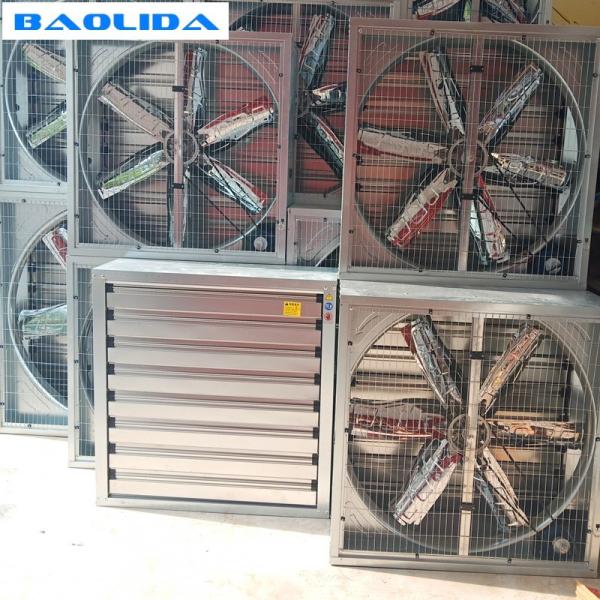

Cooling Fan For Poultry Farming or Greenhouse
Exhaust fan is featured by low noise, electricity saving, large air
flow, easy installation, which is an ideal choice for sunstroke
prevention and ventilation in occasions such as various warehouses,
offices, flower greenhouses & poultry houses. The product is used
to transport non-flammable, low-corrosive gases with the
temperature no higher than 500℃, relative humidity no greater than 80% and the quantity of dust
and solid impurities 150mg/m³.
| Size (mm) | 1380*1380*400 | Transmission Mode | Belt |
| Blade Dia (mm) | 1250 | Rotational Speed (r/min) | 425 |
| CFM (m3/h) | 44500 | Voltage (v) | 380 |
| Noise (db) | ≤65 | Input Power (w) | 1100 |
| Total Pressure (pa) | 60 | Net Weight (kg) | 7 |
How the Cooling Pad And Cooling Fan Works:
Package and Delivery
Packaging & Shipping
The delivery time depends on detalis of the greenhouse project such
as type ,size,suporting system etc.We will arraenge production and
delivery after all the information comfirmed,and we will make
strange packing to ensure the goods remain intact when reaching the
destination.
