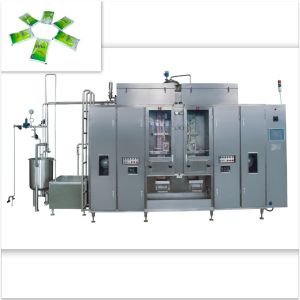

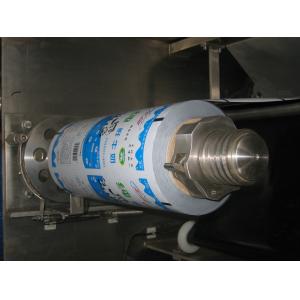

    Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers

    Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers
    • Buy cheap Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control from wholesalers

    Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control

    Ask Lasest Price
    Brand Name : PLS
    Model Number : WB64B-9000A
    Certification : ISO9001, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets/month
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

    Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control

    aseptic pouch filling machine, aseptic plastic pouch filling machine

    The machine adopts complete pneumatic structure and PCC intelligent computer controllable program control with stable running, simple operation and low maintenance cost. The products are continuously upgraded. The high speed machine of 9000 model has been firstly produced in the country.

    filling size: 200-1000ml
    200ml: 8000 packs/H
    500ml: 6000 packs/H
    1000ml: 3000 packs/H

    Introduction of PLS Aseptic Pouch Filling Machine

    This packing machine has been widely applied in various fields, including liquid dairy products, plant protein beverages such as UHT milk, flavored milk, fruit juice, peanut milk, soybean milk, vinegar, water and yellow wine. It also has the extending functions like automatic cursor orientation and step-less filling speed control. It can pack 2 different volumes at same time (eg, 200ml * 500ml simultaneously).

    1. Specification
    TypeWB64B—9000
    Produce capacity

    100ml ----- 9000 bags/h

    500ml ----- 4500 bags/h

    Filling adjust wayNon-step
    Filling heads2 (separate filling volume control)
    Packing typeThree sides seal
    Filling temperature20~25℃
    Film wastage/seal integrity

    <3‰

    (Count from actual production, except warm-up ones)

    Motor power (KW)30
    Electricity3+N+E 380/220V 50Hz
    Voltage tolerance≦±5%, use regulator if necessary
    Dimension (mm)4600*1500*3600
    Installation dimension (mm)7000*6000*4900
    Film width (mm)320 ± 1 or 260 ± 1
    Max. film weight20kg
    Compressed air≥0.6Mpa, 3m3/h
    Steam>4bars, 5kg/h
    H2O2 standard35% food grade
    H2O2 consumption

    1L each time for filing chamber sterilization;

    1L/4H for production

    Water consumption500L/each CIP process

    1. Main Components:
      No.NameImportedCountry
      1Main Control SystemB&R PCCAustria
      2Materiel & CIP ValveAPVU.K.
      3Level Control ValveGEMUGermany
      4Level SensorE+HGermany
      5CylinderFESTOGermany
      6Angle Seat ValveGEMUGermany
      7High-Speed Electromagnetism ValveMACU.S.
      8Steam Reducing Valve

      PICUT

      (Watson McDaniel)

      U.S.
      9MotorABBSweden
      10H2O2 PumpNikuniJapan
      11Step DriverSHAPHONU.S.
      12Spraying systemsSpraying SystemsU.S.
      13Human interfaceHitachiTaiwan
      14Electric SwitchSchneiderFrance
      15SwitchTURCKGermany
      16Laser SensorBANNERU.S.

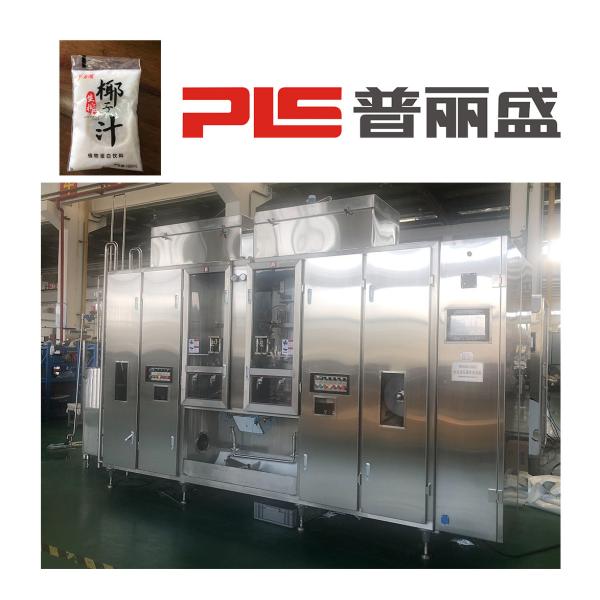

    Quality Aseptic Pouch Filling Machine PCC Intelligent Computer Controllable Program Control for sale
