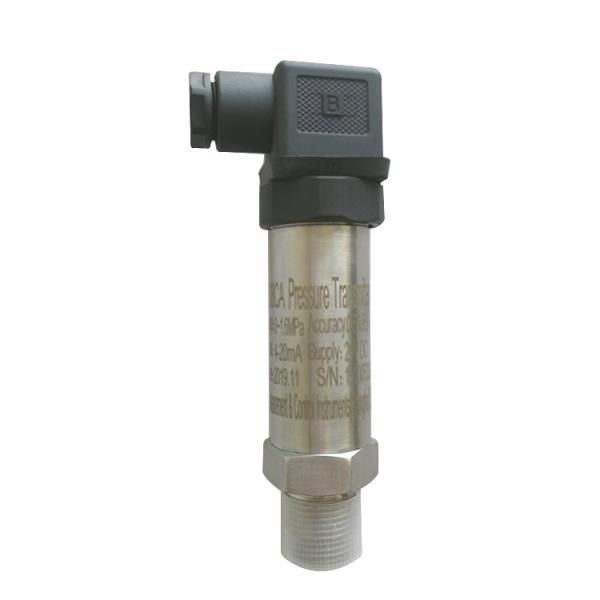

Diffusion Silicon Pressure Transmitter 316 Stainless Steel All - Solid Design

Gauge Pressure Transmitter 316 Stainless Steel High Accuracy
1. Introduction
ML2000A series pressure transmitter is isolation packaged by low temperature welding of metal and export MV signal through inside circuit adjustment, then convert signal into standard two-wired current signal output to pressure through amplifying circuit. It is used to measure pressure, liquid level in industry automatic controlling process. This product applies integrative stainless steel structure, all-solid design, which can be used in severe environment. It is of easy installation with high shock resistance and impact resistance. Pressure transmitters are used to measure the pressure of liquids, fluids, and gases in the process industry. Also, known as pressure transducers, these equipment do more than just checking the pressure of the working equipment.


2. Technical Parameters

• Power Supply: 12VDC~36VDC, Typical 24VDC
• Signal Output: 0~5V,1~5V, 4-20mA, 0-10mA, 1-10KHz
• Pressure Range: -0.1~0~0.02~100MPa

• Compensation Temperature: -10~70℃

Medium Temperature: -40~125℃
Ambient Temperature: -40~85℃

• Shell Protection: IP65
• Pressure Type: Meter Pressure, Absolute Pressure, Sealing Pressure
• Accuracy: ±0.1%, ±0.3%, ±0.5%
• Stability: ≤±0.5%FS per year
• Zero Temperature Drift: ±0.03%FS per year
• Sensitivity Temperature Drift: ±0.03%FS
• Overload Pressure: 200%FS
• Fixed Frequency: 5KHz~650KHz

3. Configuration

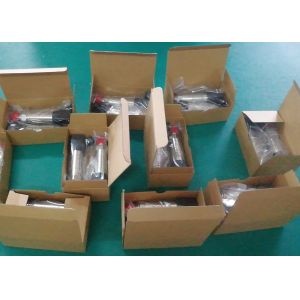

4. Product Photos
