Dried fish color sorter shrimp sorting machine with very compective
price
Product Description
According to different color selecting material, shrimp color
sorting machine, shrimp skin color sorter,
clove fish color sorter, sheep selenium dishes sorter, Haiqing food
and a variety of seafood, seafood
products dry color sorter
| Model | 6SXZ-68L | 6SXZ-68L | 6SXZ-136L | 6SXZ-272L | | Output | <600kg/h | <1000kg/h | <1200kg/h | <2400kg/h | | Carry over Rate(Bad:Good) | 12.5:1 | 12.5:1 | 12.5:1 | 12.5:1 | | Sorting Accuracy | ≥99.9% | ≥99.9% | ≥99.9% | ≥99.9% | | Voltage(V/Hz) | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | | Power Supply(Kw) | 0.7-1.0 | 1.5-2.0 | 1.5-1.8 | 2.5-3.0 | | Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 | | Air Consumption(L/min) | <500 | <600 | <1000 | <2000 | | Weight | 310kg | 550kg | 490kg | 920kg | | Dimension | 2051*1240*1762mm | 3200*2020*810mm | 2037*1540*1550mm | 1922*2430*1349mm |
|
Technical features:
1. The use of imported high precision 5340 pixel high speed linear
array scan color CCD, sorting and identification of more fine;
2. Through the selection of different specifications of slide, no
need to replace the light source, can be suitable for various
material separation;
3. High quality image processing technology, can be resolved 0.04
square millimeters of small regions; can be a thousand kinds of
materials, a number of colors to define color selection, to truly
achieve the color selection of seafood;
4. A strong independent intelligent operating system, each model
has a memory function can be stored, once again sorting without the
need to set up, just store the call, and can get the best sorting
results;
5. Can identify the subtle defects in materials, for high precision
sorting and ordinary color sorting machine can not be separated
from the material to provide a good solution;
6. High brightness, long life LED light source can meet the multi
material, multi color color selection, no need to replace the light
source;
7. Very powerful hardware and software operating platform, easy to
learn, easy to understand, easy to operate, fast, intuitive.
Sea Food Color Sorte Working Principle
1. Raw Material are put into the machine from its feeding hopper on
the top.
2. Vibrated by vibration device and sliding along material chute
into the zone of observation in sorting chamber
through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound
light from materials being sorted.
4. According to the light intensity and color changes, make the
system produce output signal and drive solenoid
valve to work ,ejecting the discolor grain to defect chamber and
good materials continue to fall into the finished
goods chamber.
Product advantages
1. Linear array CCD adopt full-color sorting technique, high
resolution for full color, High speed sorting recognition is more
exquisite.
2. Blend in Shape recognition technique,more precise to make a
grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust
the spectral region
4. It can be suitable to sort a variety of grains, industrial
products, other particles and sheet material through choose
different sloping chute.
5. High resolution imaging technology,take the pictures to collect
the images of sorted products,
it can be defined sorting for thousands of materials and 100,000
colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process
multi-tasking and multi-mode color sorting,
multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satify to different
products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to
operate.

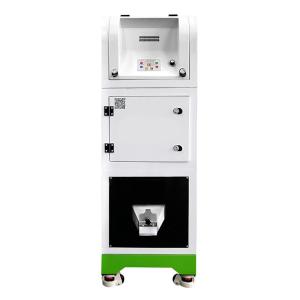

Real Picttures Show
Investment and return: How much can the smallest color sorter make
for you?
Invest in 1 mini Color Sorter. For first year, your net profit will
increase $18,000. The second year, $28,000
And the fifth year, your net profit will increase $130,000. ( not
include the spreads after sorting)
NOTE
24h*7 Multi-language Online Servive
Do you have some questions and want to get professional answer?
Do you want to get free testing?
Welcome to click here or add our whatApp +8618012365661 to contact us.
working principle
Color Sorter's working principle is according to the difference of
the optical properties of the material, use photoelectric detection
technology automatic sorting the heterochromatic granule from raw
material.
Colour sorters or color sorters (sometimes called optical sorters
or digital sorters or electronic colour sorters ect.) are machines
that are used on the production lines in bulk food processing and
other industries. They separate items by their colours, detecting
the colours of things that pass before them, and using mechanical
or pneumatic ejection devices to divert items whose colours do not
fall within the acceptable range or which are desired to form a
separate group from the rest.
Grain (agricultural products) industry
Color sorters are mostly used in sorting grain (agricultural
products). The rice sorting industry is the first big market, the
rice sorting technology is according to the color differences of
rice (husked paddy) materials, using a high-resolution CCD optical
sensor to separate different stones, black rice, etc. It is the
final step after polishing rice with a rice polisher. The second
sorting market is in use for coarse cereals, such as wheat, corn,
peanut, different kinds of beans, sesame seeds, etc. Sorting
machines improve product quality and add social benefits.
