High Precision Automatic Spacer Bending Machine High Speed
Operation
Autimatic spacer bending machine(LJZW2020)
1.Overview.
Automatic spacer bending machine is a special equipment for making
aluminum frames of insulating glass,which replaces the traditional
fabrication technology.This equipment can make a variety of convex
polygonal aluminum frames by one aluminum strip in one time,thus
strengthening the aluminum frame,making the sealing effect of the
insulating glass more better.
2.Function of automatic bending machine
The automatic bending machine continuous bending of aluminum frames in insulating glass.Bending of
aluminum frames can improve the sealing performance of insulating
glass ,and its appearance is better.
3.Product features
(1)Aluminum bending machine adopt Siemens PLC control system,touch interface.And Simens CNC
servo control system.Pause and Reset device for handing equipment
failures.
(2)Four spacer size storage units.Generally can store 6.9.12.27
four kinds of aluminum frame.
(3)Separated guard board outside of bender .
(4)Auxiliary function of adjustment for bending large aluminum frame
,and specer are available in different sizes and sizes.For
example,circle,square,triange,hexagon,octagon,etc.
(5)Spare parts of all machine have ID codes,and more convenient
after sales service.

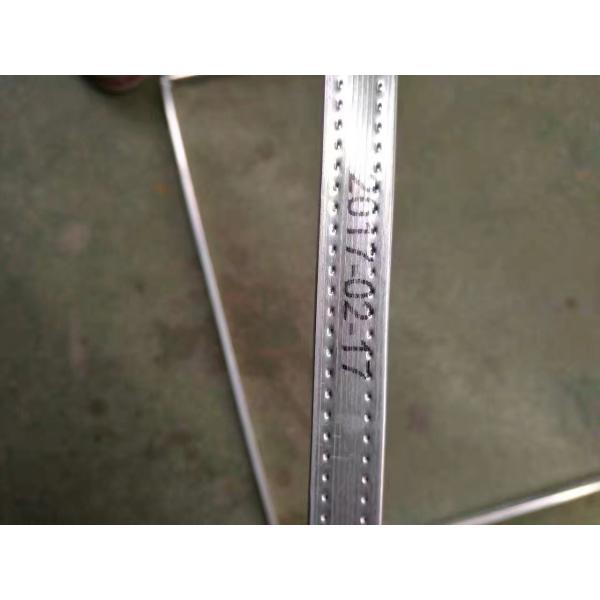

(6)Spacer printing code function (Optional)
(7)Heavy duty connectors is convenience and safety for installation
and debugging.
4.Parameter
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5A-27A |
| Dimensional error | ±0.5mm |
| Angle error | ±1 |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | Ac220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
5.About the company.
Jinan Lijiang Automation Equipment Co., Ltd. is located in the
beautiful Spring city------Jinan. It is an enterprise which
integrated glass processing equipment research and development,
sales and service into a whole. As it is close to Beijing-Shanghai
high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass
machinery and equipment by learning from famous
experts,establishing the research and development centers,
cooperating with domestic and foreign well-known enterprises,
importing advanced technology and so on. So that our company has
became an vital domestic and foreign glass processing equipment
supplier. Now, our friendly partners include North Glass, Xin
Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing,
Sichuan Li Hehua and other well-known enterprises. Since the
establishment of the company, our products have been exported to
Europe, South America, the Middle East, Southeast Asia, nearly 30
countries and regions. At the same time, our company worked with
the well-known domestic research institutes, such as the North
China Industrial Group, Shandong University and others, to
constantly improve the level of technical research. So far, we have
independently produced the vertical automatic IG production line
with filling gas on line, the vertical IG sealing robot, the new
butyl extruder machine, and the new fully automatic butyl extruder
machine, its technology and quality have reached the leading level
in China.
