High quality hot dipped galvanized steel grating mesh can
customized
Product details
Material:Low cardon steel,mild steel,stainless steel
Surface treatment:Hot dipped galvanized,painting
Size:3'*20',3'*24',3'*30',1000mm*1000mm,1000mm*5800mm,1000mm*6000mm.
Application:Industrial platform,flooring and walkway,traffic,steel structure.
Packing details:pallets in containers by steek straps other worthy export
packing,or according to your packing requirements.
Steel grating is flat steel bar according to a certain distance and cross
arranged and welded into the middle of a square lattice with an
iron and steel products ,steel grating generally use carbon steel
production,appearance of hot dip galvanized,can serve to prevent
the role of oxidation,can also be made of stainless steel .
Standard for Steel Grating
A) China: YT/T4001.1-2007
B) U.S.A.: ANSI/NAAMM (MBG531-93)
C) U.K.: BS4592-1:1995
D) Australia: AS1657-1992
E) Japan: JJS
General information of steel grating

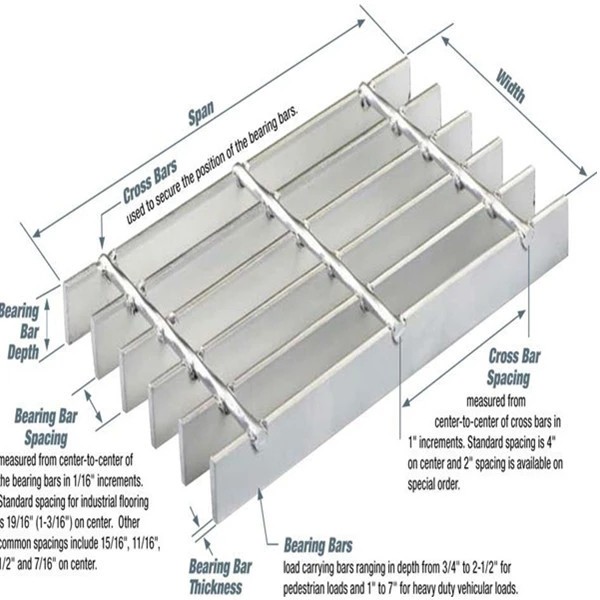

Bearing bar - A flat bar withstanding the main load is in
consistent with the span direction .
bearing bar pitch - the distance center to center of the two
bearing bars.
Cross bar - the connecting bars , made from twisted bar ,round bar
or flat bar, which extend across the bearing bars .
Cross bar pitch - the distance center to center of the two adjacent
cross bars.
Length (span)- the maximum dimension of a grating panel ,measured
parallel to the bearing bar ,and in the same direction as the
baering bars .
Width - the maximum dimension of a grating panel ,perpandicular to
the bearing bars .and in the same direction as the cross bars.
Type of Steel Grating
Common spesification :
| Bearing bar pitch | Cross-bar Pitch | Specification of bearing bar (width×thickness) |
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | G203/60/50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross-bar Pitch | Specification of bearing bar (width×thickness) |
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50
|
Steel grating Surface Treatment
1.Hot dipped galvanized :According to GB/T13912-92 standard :the
average zinc thickness is more than 610g/m²(flat bar ≥5mm) and
460g/m²(flat bar <5mm)
2.Painting :According to the clients' requirement, choose japanning
dipped coating
3.No surface treatment
Steel grating application
Steel grating used in flooring, catwalk, mezzanines/decking, stair
tread, fencing, ramp, dock, trench cover, drainage pit cover,
maintenance platform, pedestrian/crowded pedestrian, factory,
workshop, motor rooms, trolley channel, heavy loading area, boiler
equipment and heavy equipment area, office buildings, apartments,
train stations, department stores, hospitals,amusement parks,etc
Packing&shipping
Packed in bundle then fixed by steel belt onto metal pallets as the
general export package and customers' requirement is accepted .
