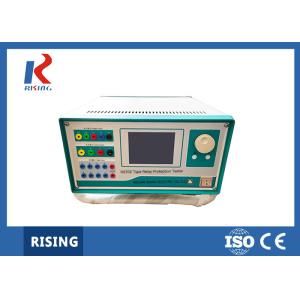

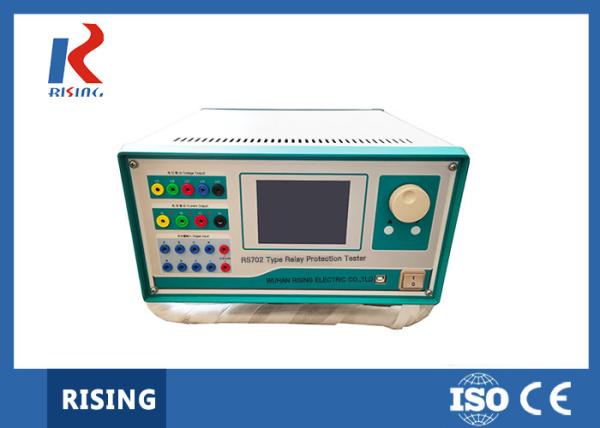

Product Description
1. Standard 4-phase voltage and 3-phase current output: with
4-phase voltage and 3-phase current output, various combination
outputs can be conveniently carried out for various types of
protection tests. Each phase voltage can output 120V, current three
can output 120A, the fourth phase voltage Ux is a multi-function
voltage item, can be set to 4 kinds of 3U0 or check the
synchronization voltage, or any certain voltage value.
2. Convenient stand-alone operation: The stand-alone machine is
operated by a convenient and flexible rotary mouse through a
large-screen LCD display, all in English. It can complete most of
the field test verification work, can verify various relays and
microcomputer protection, and can simulate a variety of complex
transient, permanent, and transitional faults for the entire set of
tests. It can be used after starting up, and the operation is
convenient and fast.
3. Double operation mode, connected to the computer to run: Through
a full set of English operation software on the Windows platform, it can carry out
various large-scale complex and highly automated verification work,
can easily test and scan various protection settings, and can be
real-time store test data, display vector graphics, draw fault waveforms,
print reports online, etc.
4. Powerful software function: It can complete all kinds of
large-scale and complicated calibration work with high degree of
automation, such as three-phase differential test, factory power
cut, standby auto-switching test, line protection inspection and
reclosing at the same time, etc., can easily test and Scan various
protection settings, perform fault playback, store test data in
real time, display vector diagrams, print online reports, etc.
Feature/Function
Standard four-phase voltage three-phase output current; Convenient
single machine operation; Dual- operating mode, computer connecting
operation; Software with powerful functions to complete various
large complex verification work of high degree of automation;
Abundant switching value contacts, 701/702 is seven circuit contact
input and two pairs of idle contact output; It has independent DC
power supply output device for special use and is equipped with one
110V and 220V adjustable DC power supply output for special use.
