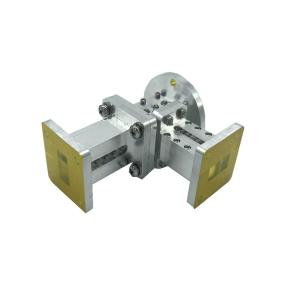

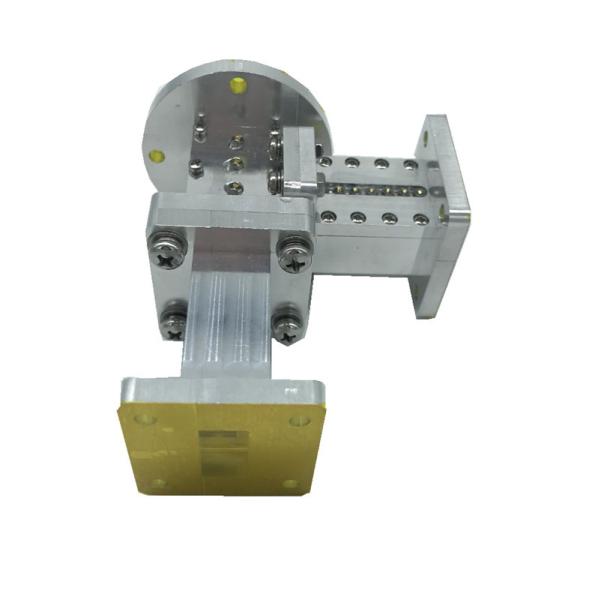

Rf Waveguide Components Ku Band Feed Source Quadrature Converter

RF Waveguide Components Ku Band Feed Source Quadrature-mode Conventer

Quadrature-mode Conventer is a kind of part , which is used to mobile satellite communication. It has the advantage of compact, low insertion loss and excellent polarization isolation.

Quick Details

Place of Origin:Sichuan, China
Brand Name:Sinoscite, Sinoscite
Model Number:snsd221
Material:Aluminum material
Feature:low insertion loss
operating frequency:19.6-21.2;29.4-31GHz
length:<30mm
passband VSWR:<1.3
Insertion Loss:<0.2dB
Cross Polar Isolation:>35dB
Dimensions:customizable
