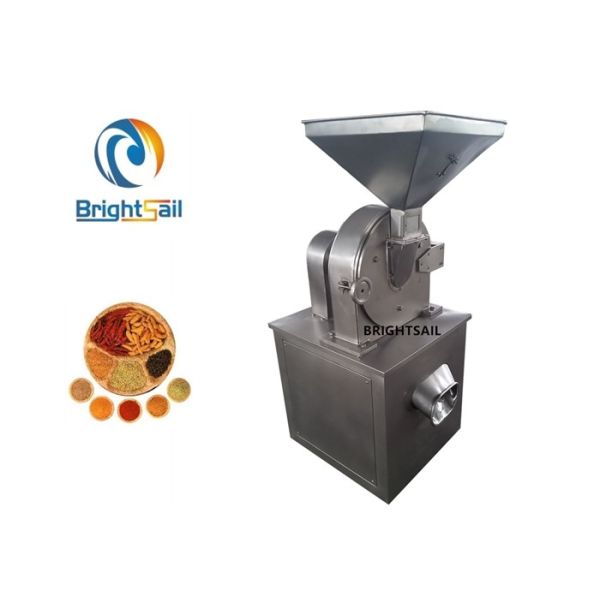

Stainless steel small spice BSU 10 to 40 mesh chili powder grinding
machine
BSU universal crusher is widely applied in industries of
food,medical,chemical...etc.For grinding of dry and fragile
materials. Materials with low softening point and big viscosity are
not appropriate for this machine.
The whole machine is made of stainless steel. The inner surface of
the enclosure becomes smooth through processing,thus changing the
powder residual phenomenon due to the coarse inner surface of the
previous models.As a result,the production of medicine,food and
chemical products can better conform to the state standard and the
GMP requirements.
Working method:
The main shaft is equipped with a movable fluted disc on which
three movable gear rings are installed. On the door there installs
a fixed fluted disc equipped with two fixed gear rings with steel
teeth. Movable gears on the movable fluted disc intersect with the
fixed gear rings. While the main shaft turns at high speed, the
movable fluted disc rotates simultaneously to throw the materials
into the gap between hammers. The crushing effect is therefore
achieved by combined actions, such as mutual impact, cutting and
abrading, between materials and gears or between materials
themselves. The finished products are discharged from the crushing
room to the collection bag after being sifted by the sifter while
crude granules continue to be crushed. Crushing of finished
products can be adjusted by the sifter. The air-cooling method is
adopted, which can also prolong the service life of the machine.
Main features:
1) Simple structure in linear type ,easy in installation and
maintation.
2) With water cooling jacket around grind chamber
3) Adopting advanced world famous brand components in pneumatic
parts ,electric parts and operation parts.
4) We have different kinds of knife to let you choose for different
kinds of material.
Our company:
Brightsail Machinery has found nearly 15 years, who designs and
manufactures overall powder processing solutions for the Chemical,
Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries,
like powder grinding machines, mixing machines, sifting
machines...etc.And our company has been one of the most famous
powder equipment manufactures in the industry.
Since we have sold many machines to more than 50 countries,we have
enough experience and technology to help you to find a most
suitable machine.We wish to grow up and develop together with all
new and old customers.
After-Sales Service:
1) One year guarantee for whole machine.
2) 24 hours technical support.
3) Our engineers can provide service overseas. The service is free,
but the charge of round air-tickets, food and hotel is to the
customer’s account.
4) After a year, we can instruct you how to maintain the machine,
and spare parts are provided with the best price.
5) We also can provide training service which help opeators handle
the machine well.
Technical data:
| Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
| Capacity(kg/h) | 20-150 | 30-300 | 50-400 | 100-800 |
| Size of input granules(mm) | <6 | <10 | <10 | <10 |
| Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 4 | 7.5 | 11 | 22 |
| Speed of principal axis(rpm) | 4650 | 3800 | 3400 | 2800 |
| Overall size(L*W*H)(mm) | 650*820*1500 | 700*900*1650 | 750*1000*1750 | 950*1250*2150 |
| Weight(kg) | 230 | 330 | 430 | 900 |
Mill part:
1) Hammer type:
2) Disc type:
