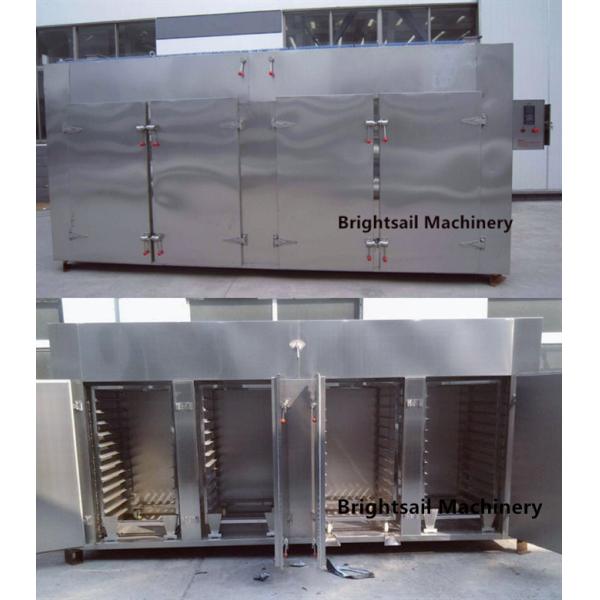

Industrial food dryer oven machine cassava plantain yam drying
machine with CE
BSO drying machine is a multifunctional drying device, which mainly
circulates inside the box through the forced hot air heated by the
electric heating tube or the steam heat exchanger to enhance the
heat transfer and achieve the effect of drying the material. It can be used in many application, like seafood, grains, herbs,
spices, fruits and other materials, which widely applied in food,
chemical, pharmaceutical and other industry.
This product is equipped with low noise, high temperature proof
axial flow blower and automatic temperature control system. The
entire circulating system is fully sealed and it increased the
thermal efficiency. The technology of the hot air circulating oven
is advanced level in world. It is an energy saving product and it
has improved the economic benefits for a lot of manufacturers.
Working method:
The basic principle of the BSO series hot air circulation drying
oven is to use steam or electricity as heat energy, and heat is
generated by a steam radiator or electric heating element. The fan
performs convective heat transfer, heat is transferred to the
material, and fresh air is continuously added to the oven to
discharge humidity Gas is blown from the oven. When drying,
maintain proper relative temperature and humidity. The most
important feature is that most of the hot air circulates in the
drying room, thereby enhancing heat and mass transfer and saving
energy.
Main features:
1. The entire machine and baking tray made of stainless steel.
2. Most of hot air inside the loop, high thermal efficiency, energy
conservation.
3. The use of forced ventilation in the box high and adjustable air
board, dry materials evenly.
4. Source may be steam or electricity.
5. With a temperature-controlled device, easy installation and
maintenance. Wide range of applications can be drying various
materials and is a versatile drying equipment.
Our company:
Brightsail Machinery Co., Ltd. has been established for nearly 15
years. It designs and manufactures integrated powder processing
solutions for chemical, pharmaceutical, food, mineral, cosmetic and
plastic industries, such as powder grinder, mixer, screening
machine, etc. Our company has become one of the most famous powder
equipment manufacturers in the industry.
As we have sold many machines to more than 50 countries, we have
enough experience and technology to help you find the most suitable
machine. We hope to grow and develop together with all new and old
customers.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
