Famous Manufacturer Electric Double Girder Gantry Crane for Sale
Product Description:
Gantry crane is similar to a bridge crane, but instead of moving on
suspended runways, the crane uses legs to support the bridge, and
the electric hoist. The crane legs travel on fixed rails embedded
in, or laid on top of the floor.
Product Advantages:
1. Cut Down your cost in building of plant and workshop;
2. Improve your production efficiency;
3. Be suitable for indoor warehouse and outdoor usage;
4. Reduce daily maintenance;
5. Safety with high performance.
ouble girder gantry crane specification:
| Capacity(t) | 1t---6.3t | 8t ,10t | 12.5t---25t | 30t---50t | 63t---100t |
| Span(m) | 6m---50m |
| Lifting height(m) | 6m---30m |
| Control mode | Pendant control,wireless remote control,cabin control |
| Lifting speed(m/min) | 5/0.83, 10/1.7 | 5/0.83 ,8/1.3 | 3.2/0.5 , 5/0.8 | 2.5/0.4 ,4/0.6 | 2.5/0.4 |
| Travelling speed(m/min) | 0--20, 0--30, 0--45, 0--60( Inverter ) |
| Service class(work grade) | a) M4: used in places of Medium service such as assembly and depot. b) M5: used in heavy place and long time working factory c ) M6 : Heavy duty service factory or long time use environment |
| Cantalever | One side or two side cantilever |
| Supply power(three phase power) | 380V 50HZ 3Phase (according to user require) |
| Hoist type | Wire rope hoist ,Double speed |
| Working ambient temperature | -20 °C~ < 50°C. |
| Note | It’s not suitable for lifting blazing & melting metal or toxicant
as well as explosion-proof or insulating working conditions. |
Main Features:
1) Simple structure in linear type ,easy in installation and
maintation.
2) Adopting advanced world famous brand components in pneumatic
parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and
closing.
4) Running in a high automatization and intellectualization,no
pollution
5) Apply a linker to connect with the air conveyor ,which can
directly inline with filling machine.

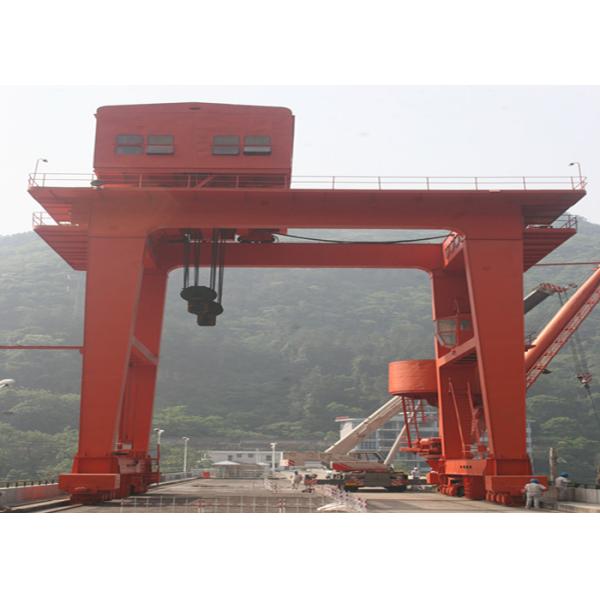

Gantry Crane Details
china warehouse 150 ton civil engineering gantry cranes are made up
of bridge, trolley, crane traveling mechanism and electric
system.All the procedures are finished in the operating room.
Applies to the open warehouse or rail along for general handling
and lifting work. Also can equipped with many lifting device for
special work. Prohibited for lifting high temperature solution,
flammable, explosive, corrosion, overloading, dust and other
dangerous operations.
Product Application:
Double girder gantry crane are made up of bridge, trolley, crane
traveling mechanism and electric system.All the procedures are
finished in the operating room. Applies to the open warehouse or
rail along for general handling and lifting work. Also can equipped
with many lifting device for special work. Prohibited for lifting
high temperature solution, flammable, explosive, corrosion,
overloading, dust and other dangerous operations.
Duoble girder gantry crane is widely used in plants, warehouses,
material stocks to lift goods.
Packing & Delivery terms:
1. Hoist and electric parts will be packed by plywood crate, for
avoiding the demage from goods crash and impact during the
delivery.
2. Girders and other main parts will be packed by plastic woven
cloth, for preventing rust from soppy condition during the
transportation.
3. Only the best transport solution will be taken for saving your
cost uttermost on finance, security and time.
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
Lift capacity ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated
?
Q.What makes you different from other manufacturers ?
We believe our service department has the experience and knowledge
to safely service your overhead cranes,gantry cranes,port crane and
hoists .We have trained service technicians who will be able to get
your material handling equipment up and running ,and have been
providing our customer’s an effective service solution .
Q. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no
problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift
clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide
service and training. Moreover, our best sales can visit your
country.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the
Special products. The detail dimension please consult our
professional engineer.
