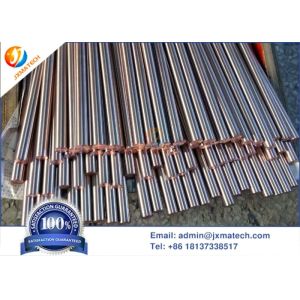

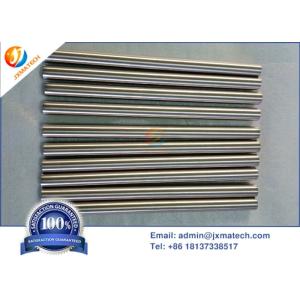

Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity

    Buy cheap Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity from wholesalers

    Buy cheap Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity from wholesalers
    • Buy cheap Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity from wholesalers
    • Buy cheap Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity from wholesalers
    • Buy cheap Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity from wholesalers
    • Buy cheap Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity from wholesalers

    Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity

    Ask Lasest Price
    Brand Name : JINXING
    Model Number : Copper Tungsten / WCu alloy
    Certification : ISO 9001
    Price : 30~100USD/kg
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000kgs/M
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity

    Tungsten Copper Bar, Elkonite® ASTM B702 RWMA Class 10,Class 11, Class 12


    The tungsten copper bar is an alloy composed of tungsten and copper, and the copper content of the commonly used alloy is 10% to 50%. The alloy is prepared by powder metallurgy method and has good electrical and thermal conductivity, good high temperature strength and certain plasticity. At very high temperatures, such as above 3000C, the copper in the alloy is liquefied and evaporated.


    • Description

    The tungsten copper bar is an alloy composed of tungsten and copper, and the copper content of the commonly used alloy is 10% to 50%. The alloy is prepared by powder metallurgy method and has good electrical and thermal conductivity, good high temperature strength and certain plasticity. At very high temperatures, such as above 3000C, the copper in the alloy is liquefied and evaporated, which absorbs a large amount of heat and lowers the surface temperature of the material. So this type of material is also known as metal sweating material.
    Tungsten copper bar grade: WD10070;
    Model: 55W45Cu, 68W32Cu, 70W30Cu, 75W25Cu, 80W20Cu, 85W15Cu, 90W10Cu.

    Tungsten Copper Bar Physical and Mechanical Properties:

    CompositesNominal Composition
    (% Weight)
    Density
    (g/cm3, ≥)
    Electrical Resistivity
    (20°C, µΩ·cm, ≤)
    Electrical conductivity
    (IACS%, ≥)
    Hardness(≥)
    Brinell Hardness
    Bending Strength
    MPaKgf/mm2MPaKgf/mm2
    CuW5050% Copper
    50% Tungsten
    11.853.2541128115------
    CuW5545% Copper
    55% Tungsten
    12.33.5491226125------
    CuW6040% Copper
    60% Tungsten
    12.753.7471373140------
    CuW6535% Copper
    65% Tungsten
    13.33.9441520155------
    CuW7030% Copper
    70% Tungsten
    13.84.142171617566768
    CuW7525% Copper
    75% Tungsten
    14.54.538191219570672
    CuW8020% Copper
    80% Tungsten
    15.155.034215822073675
    CuW8515% Copper
    85% Tungsten
    15.95.730235424076578
    CuW9010% Copper
    90% Tungsten
    16.756.527255026080482


    Tungsten Copper Bar are widely used where the combination of good electrical and/or thermal conductivity and low thermal deformation is necessary, for example:· In electric resistance welding as electrical contacts or heat sinks.· In electrodes for electrical discharge machining (EDM) and electrochemical machining (ECM).

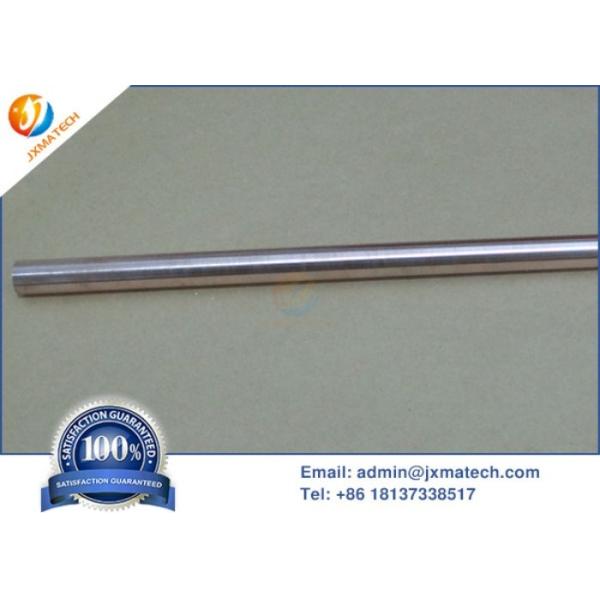

    Quality Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity for sale
