| Brand Name : | Cisco |
| Model Number : | A9K-MPA-8X10GE |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | Western Union, Paypal,T/T |
| Supply Ability : | 1000 Pcs /Month |
| Delivery Time : | 1~2 days |

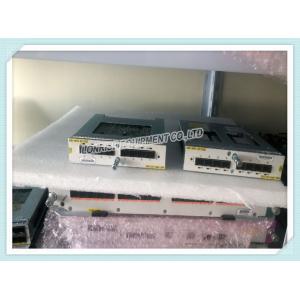

The Cisco® ASR 9000 Series modular line cards provide customers with a flexible solution supporting multiple combinations of Ethernet ports, all in a single slot of the Cisco ASR 9000 Series Aggregation Services Routers. Modular line cards support a wide range of interfaces and densities.
Using the modular line cards, the Cisco ASR 9000 Series can support customer applications including video-on-demand, Internet Protocol Television (IPTV), point-to-point video, Internet video, and cloud-based computing. These line cards can also be used to deliver economical, scalable, highly available, line-rate Ethernet and IP/Multiprotocol Label Switching (IP/MPLS) edge services. The Cisco ASR 9000 Series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, supporting profitable business, residential, and mobile services
Product Details
| Description | Specification |
|---|---|
| Chassis compatibility | Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems |
| Port density | Up to 2 modular port adapters are supported per line card.. |
| Ethernet | ● IEEE 802.3 compliant ● 10 Gigabit Ethernet PHY monitoring ● IEEE 802.x flow control ● Full-duplex operation ● Per-port byte and packet counters for policy drops;
oversubscription drops; cyclic redundancy check (CRC) error drops;
packet sizes; and unicast, multicast, and broadcast packets |
| Card density | Maximum number of line cards per system: Cisco ASR 9922 = 20, Cisco
ASR 9010 = 8, and Cisco ASR 9006 = 4 |
| Options | Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card. |
| Reliability and availability | Line card online insertion and removal (OIR) support without system impact |
| Network Equipment Building Standards (NEBS) | Cisco ASR 9000 Series Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) | 23 to 131ºF (–5 to 55ºC) |
| Operating humidity (nominal) relative humidity | 10 to 85% |
| Storage temperature | –40 to 158ºF (–40 to 70ºC) |
| Storage relative humidity | 5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
| Operating altitude | –60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
