| Brand Name : | Rich Packing |
| Model Number : | DPP-260S |
| Certification : | CE/ISO 9001/SGS |
| Price : | Negotiable |
| Payment Terms : | L/C, D/P, T/T |
| Supply Ability : | 50 pcs/month |
| Delivery Time : | 20-30 working days |

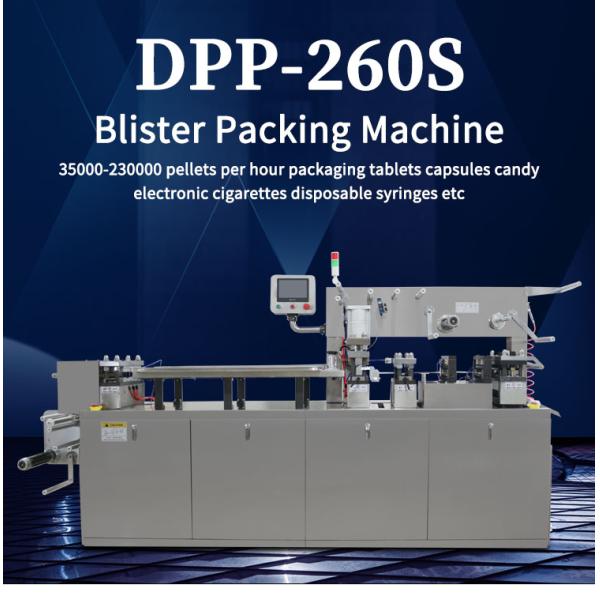

DPP-260S is a high-speed flat-panel aluminum-plastic blister packaging machine newly developed by Guangdong Rich Packing Machinery Co.,Ltd. It is driven by servo motor, with better accuracy, stable operation and convenient adjustment.DPP-260S expect can packaging tablets,capsules,candy,also can packaging many big sizes products,such as electronic cigarettes,perfume,tomato paste,soft capsules,big honey pills,penicillin bottles and etc.
| Power supply | 380V/220V/50Hz |
| Standard Travel Range | 40~185mm |
| Standard Plate | 80*57mm |
| Thickness and Width of PVC | 0.15~0.5*120mm |
| Thickness and Width of PTP | 0.02~0.035*120mm |
| Dialyzing Paper | 50~100g*120mm |
| Vacuum | 0.4MPa-0.6MPa |
| gas consumption | ≥0.3m3/min |
| Noise | <75dBA |
| Mold Cooling | Runing water or circulating water |
| Weight | Net weight1300kg ;Gross weight1400kg |
| Overall Size of Machine | 3000*730*1600 mm(L*W*H) |
| Packing Size | 2750*950*1800mm(L*W*H) |
1.Cylinder Drive Heat Sealing Device
Adjustable temperature, Accurate Travel;Tight Sealing, No Wrinkles

2.Handwheel With Scales
Each Station Can Move Freely On The Spindle Through The Free Adjustment Of Handwheel

3.Locating Slot Pins Mould
One-key Positioning, And The Debugging Time Was Reduced 50%

|
