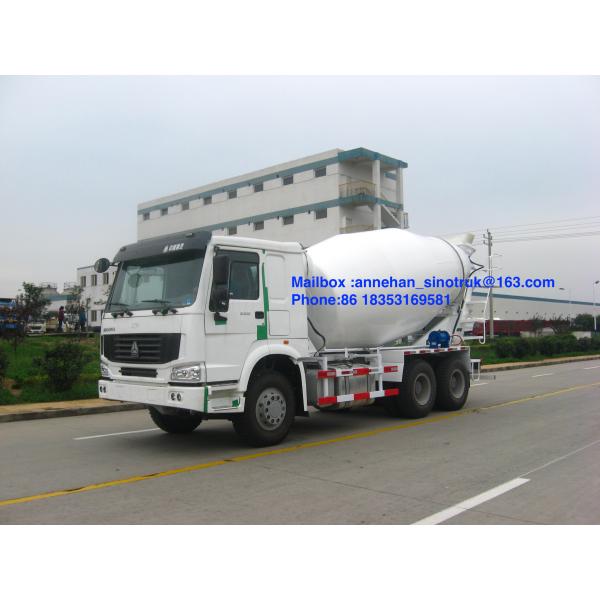

336hp Sinotruk Howo7 10m3 8m3 Concrete Mixer Tank 6x4 Lhd White Color

    Buy cheap 336hp Sinotruk Howo7 10m3 8m3 Concrete Mixer Tank 6x4 Lhd White Color from wholesalers

    Buy cheap 336hp Sinotruk Howo7 10m3 8m3 Concrete Mixer Tank 6x4 Lhd White Color from wholesalers
    • Buy cheap 336hp Sinotruk Howo7 10m3 8m3 Concrete Mixer Tank 6x4 Lhd White Color from wholesalers
    • Buy cheap 336hp Sinotruk Howo7 10m3 8m3 Concrete Mixer Tank 6x4 Lhd White Color from wholesalers
    • Buy cheap 336hp Sinotruk Howo7 10m3 8m3 Concrete Mixer Tank 6x4 Lhd White Color from wholesalers
    • Buy cheap 336hp Sinotruk Howo7 10m3 8m3 Concrete Mixer Tank 6x4 Lhd White Color from wholesalers

    336hp Sinotruk Howo7 10m3 8m3 Concrete Mixer Tank 6x4 Lhd White Color

    Ask Lasest Price
    Brand Name : Sinotruk
    Model Number : Howo7
    Certification : iso ccc
    Payment Terms : L/C, T/T
    Supply Ability : 100units/week
    Delivery Time : 30days
    • Product Details
    • Company Profile

    336hp Sinotruk Howo7 10m3 8m3 Concrete Mixer Tank 6x4 Lhd White Color

    Product Description

    Description

    Concrete Mixer Truck 10CBM SINOTRUK HOWO 336HP 6X4 LHD ZZ5255GJBN3846B1
    The Concrete Mixer Truck series of products produced by adopt Germany's proprietary technology.
    Products material requirements, the production process, acceptance criteria, all adopt the technology
    provided by the German standards.
    This products use the imported reducer, motor and hydraulic pump. Dynamic force output by the second class chassis full power take off through the shaft power to the hydraulic pump, hydraulic pump produces hydraulic energy through tubing to the hydraulic motor, hydraulic motor to convert hydraulic energy into kinetic energy and through reducer then reduce and increase twist to the mixing tank, by adjusting the (double acting variable) servo controller of hydraulic pump Angle so as to realize controlling turning and speed of mixing drum, then to realize the concrete charging, stir and discharging operation.

    Product Name
    SINOTRUK HOWO 6X4 Mixer Truck
    Chassis Model
    ZZ1257N3647W
    Driving Type
    LHD (RHD is optional)
    Cabin
    HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
    Engine
    Make: SINOTRUK
    Diesel 4-stroke direct injection diesel engine
    Engine model: WD615.69, Euro 2, 336 HP
    6-cylinder in-line with water cooling, turbo-charging and intercooling
    Displacement: 9.726 L
    Transmission
    HW19710, 10F & 2R, with PTO
    Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
    Steering
    ZF power steering, modol ZF8118, hydraulic steering with power assitance
    Front Axle
    HF9,1x9000 KGS
    Steering with doubleT-cross section beam
    Rear Axle
    HC16, 2x16000 KGS
    Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
    Ratio:5.73
    Propeller Shaft
    Double universal joint propeller shaft with gear-shaped coupling flange
    Chassis
    Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
    Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
    Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
    Brake
    Service brake: dual circuit compressed air brake
    Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
    Auxiliary brake: engine exhaust brake
    Electrics
    Operating voltage: 24 V, negative grounded
    Starter: 24 V, 5.4 Kw
    Alternator: 3-phase, 28 V, 1500 W
    Batteries: 2 x 12 V, 165 Ah
    Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
    Tyres
    295/80R22.5, tubeless tyres with one spare tyre
    Fuel Tank
    300L
    Mixer Body
    Tank Body: 8 Cubic Meters
    Mixer Pump: Eton (USA Brand)
    Motor: Eton (USA Brand)
    Speed Reducer: Bonfiglioli (Italy Brand)
    Overall Dimension
    9000*2550*3950 mm

    FACTORY PICS :

    Mrs AnneHan (International Marketing depart)
    E-Mail :AnneHan_Sinotruk@163.com
    Cell &Whatsapp&Wechat: +86 18353169581
    Linkin :AnneHan
    Facebook:AnneHan
    CHINA NATIONAL HEAVY DUTY TRUCK GROUP
    JINAN HEAVY TRUCK IMPORT&EXPORT CO.,LTD
    TRUCK ,TRAILER ,MACHINERY ,EQUIPMENT ,SPARE PARTS .....ETC FOR SALE&EXPORT .
