KGPS Medium Frequency Power Source Bending Heating Induction
Equipment
Brief Introduction Of electric metal melting furnace :
Medium frequency melting furnace is a induction heating equipment ,
Alternating current in the coils melts the metals in the crucible
and then heat the hot metal to the temperature needed.As well as
heating treatment prior to forging , sintering and hot rolling in
casting and melting industries.
Technical specification of KGPS Medium Frequency Power Source Bending Heating Induction
Equipment:
| Model | Input power(kw) | Semlting capacity(T) | Smelting(T/H) |
| KGPS-50 | 50 | 0.05 | 0.02 |
| KGPS-100 | 100 | 0.1 | 0.1 |
| KGPS-160 | 160 | 0.15 | 0.21 |
| KGPS-250 | 250 | 0.25 | 0.35 |
| KGPS-300 | 300 | 0.3 | 0.38 |
| KGPS-400 | 400 | 0.5 | 0.55 |
| KGPS-500 | 500 | 0.75 | 0.77 |
| KGPS-750 | 750 | 1 | 1 |
| KGPS-1000 | 1000 | 1.5 | 1.5 |
| KGPS-1400 | 1400 | 2 | 2 |
| KGPS-2000 | 2000 | 3 | 2.8 |
| KGPS-3000 | 3000 | 5 | 4.3 |
| KGPS-4000 | 4000 | 7 | 7 |
| KGPS-4500 | 4500 | 8 | 7.5 |
| KGPS-6000 | 6000 | 10 | 10.78 |
Features of KGPS Medium Frequency Power Source Bending Heating Induction
Equipment:

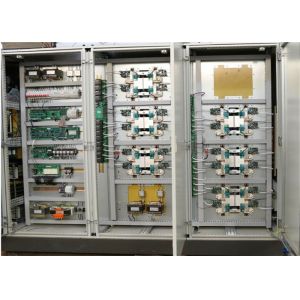

Features of the medium frequency power supply cabinet:
• Easy operation:
A full time operator specially for power supply is not needed
.There is only one switch for turning on or off and one power
adjustment knob. After started, the only thing that needs to be
done is rotating the power adjustment knob to the largest location,
others are controlled by the device itself.
• Safety protection functions of induction melting furnace:
1. The main circuit and short circuit protection
2. SCR overvoltage protection
3. Main circuit phase fault protection
4. The main circuit phase loss protection
5. Low water pressure protection
6. SCR overcurrent protection
• Highly reliable electrical control board
In the operation, the 3-phase current is balanced. Due to the
advanced design, the 3-phase power supply's sequence could be
connected randomly. Moreover there is no limit to connect to
capacitor cabinet and furnace. All of these jobs can be judged to
be adapted automatically by the device itself. It makes the
installation and maintenance very easily.
Advantages of our Machine Factory Medium Frequency Transformer Heating Induction
Equipment:
1. Big reactor design:
Strong filtering ability, greatly reduce harmonic pollution to the
grid, suppress the current mutation, protect the transformer.
2. Large section area of current carrying discharge:
Select 8×60 copper row, large cross-sectional area, strong current
carrying capacity, reduce heat.
3. Cabinet uses RITTAL brand:
Durable and beautiful
4. Appliances: SCHNEIDER brand
5. Button: IDEC brand
6. Insulating plate:Durable and high insulation grade, beautiful
7. Water segregator: Stainless steel
8. Cooling water pipe: Specially customized, high temperature and
high pressure
9. Inverter increase resistance and capacity absorption: it can
effectively suppress the instantaneous oscillation and
high-frequency current of operating overvoltage, so that the
waveform of overvoltage becomes slow, the steepness and amplitude
are reduced, plus the damping effect of resistance, so that the
high frequency oscillation rapidly attenuates
- Except KGPS Medium Frequency Power Source Bending Heating Induction
Equipment We Also Have:
RFQ of Our KGPS Medium Frequency Power Source Bending Heating Induction
Equipment:
Q1.How does your factory perform quality control?
A :the selection of international and domestic a line brand, strict
control of assembly process, each machine before delivery, and by
experiments in the simulation field 24 hours of continuous
work,ensure that qualified factory every device.
Q2. What about after-sales service?
A :(1) the after-sales hotline is 24 hours online;
(2) simple problems can be video or mail processing;
Q3. Why do you choose our Heiyan KGPS Medium Frequency Power Source Bending Heating Induction
Equipment?
A :(1) we are a manufacturer specializing in the production of
induction heating equipment in China. We are a comprehensive
enterprise integrating r&d, production and sales.We not only
produce induction heating equipment, but also provide customers
with the overall solution of frequenching, welding and forging.
(2) We have a senior team in the induction heating industry for
over 15 years.
