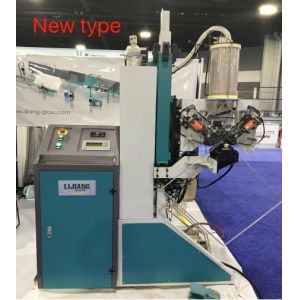

LJGZ2020 Desiccant Filling Machine double glazing glass machine
insulating glass machine
Machine describe
1. The desiccant filling machine the machine height can be adjusted
according to the size of spacer frame
2. Desiccant Filling time can be adjusted on the touch screen,
3. Desiccant auto loading and replenish
4. Auto drilling the holes on the spacer back side, filling and
sealing function
5. Germany Siemens PLC control system
6. Touching screen interface, simple and visible
7. New appearance.
8. Special struture for convenient and safe to change butyl
Main technical parameter
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
The main electric arts use SIEMENS , The machine height can be
ajusted.
The Brand use on the machine:
| Name | Brand | Name | Brand |
| PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
| Low voltage electrical apparatus | German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
| Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
| Guide | Taiwan TBI | Switch power | Taiwan TEND |
There have the cover before the machine heard to protect the
operater.
The width of the spacer can be adjusted.
JINAN LIJAING AOTUMATION EQUIPUMENT CCO,.LTD has experienced team on the Double Glazing machine .
we have 20years experience in this field, we have many after sales
team over the word. Like USA ,TURKEY,INDIAN ,SOUTH AMERMIERCA.
they all professional on this machine.
We know quality is very important for the machine. So we pay much
attention on the quality control.
All the electric parts we use SIEMENS. FOR good quality.
Company instruction:
JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing,
sale and service into a whole. The company is located in the
beautiful spring city, Jinan. Because it is close to
Beijing-shanghai high-speed railway line, it’s very convent for
transportation.
The company adheres to the “Hi-Q products”. We are striving to
create the top-grade products through setting up technology
research and development center, inviting some experts to guide. We
also cooperate with the domestic well-know enterprises and actively
import foreign advanced technology. Now our company are the main
supplier of glass deep processing enterprises in China. Our
equipment are used by the main domestic famous glass factories,
such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN
HUAYING GLASS etc. We also have more than 400 customers who use our
machines in China. We have got CE certification in 2017. So far our
machines has exported to more than 30 countries and regions, just
like Europe, South America, Middle East, Southeast Asia and so on.
At the same time, our company cooperates with scientific research
institution, which is based on research and development center,
imported advanced intelligence. Our company successively cooperates
with institution of China North Industries Group and Shandong
University in order to develop more new products. Now we have
already successfully produced vertical insulating glass production
line, vertical insulating glass sealing robot and new butyl
extruder machine, which quality has reached the domestic top-grade
level.
LIJIANG GLASS are goes into a leading way in the mechanical field
with the advanced technology, first-class products, perfect service
and good reputation!
