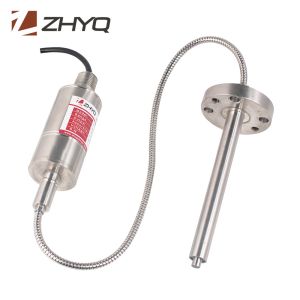

Flange Mountingblow Film Machinery Melt Pressure Transmitter 5PIN 6PIN
Description
PT124B-126 Series Melt Pressure Transducer(Flange type)adopts special construction design and excellent alloy elastic membrane to reduce the thermal draft and improve measurement accuracy . The zero & full span can be calibrated, with amplify signal be connected with PLC and 80% calibration inside. It has wide application of pressure measurement & control for melt-temp liquid for chemical and fiber equipment, polyester equipment, etc.
Application
Feature
Specification
| Range: | 0….1MPa to 0….150MPa |
| Output: | 0~5V; 0~10V; 4-20mA; 2mV/V; 3.33mV/V |
| Accuracy: | ±0.5%FS; ±1%FS |
| Input voltage: | 24(12-36V)DC; 10VDC |
| Repeatability: | ±0.2% |
| Construction: | Wheatstone bridge |
| Bridge resistance: | 350 ohms±10% |
| Overload pressure: | 2×FSO |
| Internal calibration: | 80%±1% |
| Insulation Resistance: | 1000Megohms @50Vdc |
| Max. Diaphragm Temp: | 400℃ |
| Electric connector: | 5PIN, 6PIN |
| Process connector: | Flange |


|
