    Good Stability Melt Pressure Sensor Space Limited Installation Eight Pin Bendix Connector

    Melt Pressure Transmitter Space Limited Installation Eight Pin Bendix Connector


    Description

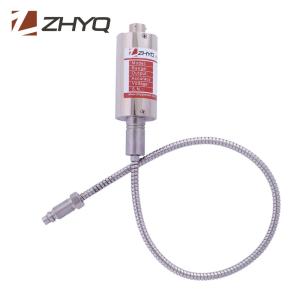

    PT124B-128 Series melt pressure transducer is ideal for space restricted areas applications required, where mounting space is limited. It also has a free-spinning jam nut that simplifies installation. The series comes equipped with six or eight pin bendix connector. It can be interchangeable with the similar world standard products. It is suitable to measure and control the melt pressure in chemical fiber equipment, rubber and plastic machine and so on.


    Application


    • Chemical fiber Equipment
    • Polyester equipment

    Feature

    • High-standard quality
    • Stainless steel Seal
    • Easy to install
    • Zero & Span Calibration
    • Internal 80% calibration
    • Excellent stability and repetition

    Specification


    Range:0….3.5MPa to 0….150MPa
    Output:0~5V; 0~10V; 4-20mA
    Accuracy:±0.5%FS; ±1%FS
    Input Voltage:24 (12-36) V DC
    Repeatability:±0.2%
    Construction:Wheatstone bridge
    Bridge resistance:350 ohms±10%
    Overload pressure:1.5×FSO
    Internal calibration:80%±1%
    Insulation Resistance:1000Megohms @50Vdc
    Max Diaphragm Temp:0~400℃
    Electric connector:5PIN, 6PIN
    Process connector:1/2″-20UNF, M14×1.5, M18×1.5(Customer design)
