DC 24 V DC 12 V Greenhouse Electric Film Roll Up Motor For
Ventilation In Green House
Product Description
The electric film roll up motor is one of main products in our
company. It used for film greenhouse for ventilation and cooling
equipment. It is a good helper to realize the automatic control of
the greenhouse film fast roll.
It can realize the automatic control of the greenhouse film fast
roll,
Suitable for use under different climatic conditions.
The Electric roll-up motor for greenhouse is used extensively in
greenhouse such as the solar greenhouse, vegetable greenhouse,
culture greenhouse, multi-span film greenhouse and other assembled
greenhouse, by which to open or close the side windows and top
windows through the rolling of film.
specification
| Voltage | DC 24V |
| Torque | 40 N.M |
| Power | 50 W |
| Rotate Speed | 3.8 rpm |
| Amps | 2.0 A |
| Max Rotations | 27 r |
| Roll Pipe Size | 22 mm / 25 mm |
| Roll Length | Less than 50m |
| Wattage | 5 years |
| Weight | 2 kg |
Electric greenhouse roll up motor:Power : 80w
RPM : 4.0rmp
Voltage : 24V
Main unit weight : 2.8 kg
Torque : 80NM
Reduction ratio : 1/800
Related Accessories : Climbing apparatus , Distribution box
Advantage
1. Light weight;
2. Rain proof,Anti condensation;
3. Large adjustment range;
4. Low power consumption;
5. High precision of stroke adjustment.
Stable Greenhouse Electric Roll Up Unit Motor advantages
1.Double limit switch protection
2.Accurate limit switch and reliable self locking property
3.Water drain added to protect the safety of circuit diagram
4.Strengthens processing to output shaft
5.Three years quality guarantee.

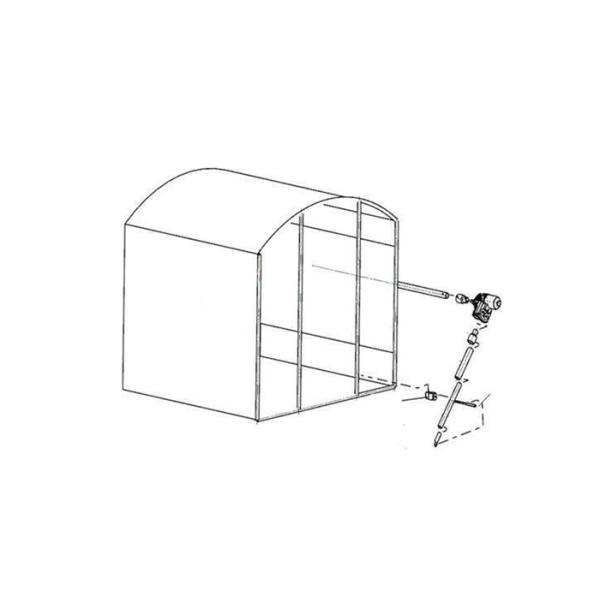

Application
Packing
1. Basic inner soft packing.
2. External plastic bags or cartons should be needed.
3. Pallets should be used for some goods.
4. Customer order labels or shipping marks.
5. Packing strap should be used for cartons to make package more
stable.
6. Container inspection must be needed before loading goods.
