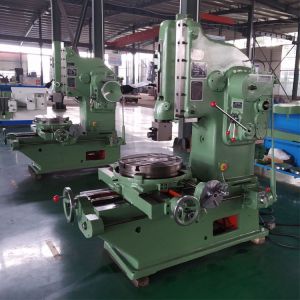

B5032 Accurate new cheap working slotting machine

    Buy cheap B5032 Accurate new cheap working slotting machine from wholesalers

    Buy cheap B5032 Accurate new cheap working slotting machine from wholesalers
    • Buy cheap B5032 Accurate new cheap working slotting machine from wholesalers
    • Buy cheap B5032 Accurate new cheap working slotting machine from wholesalers
    • Buy cheap B5032 Accurate new cheap working slotting machine from wholesalers
    • Buy cheap B5032 Accurate new cheap working slotting machine from wholesalers
    • Buy cheap B5032 Accurate new cheap working slotting machine from wholesalers
    • Buy cheap B5032 Accurate new cheap working slotting machine from wholesalers

    B5032 Accurate new cheap working slotting machine

    Ask Lasest Price
    Brand Name : WADJAY
    Model Number : B5032
    Certification : ISO 9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets / month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    B5032 Accurate new cheap working slotting machine

    B5032 Accurate new cheap working slotting machine


    Technical parameters

    SpecificationUnitB5032B5020
    Max. Slotting lengthmm320220
    Worktable sizemm630*560200
    Ram motion frequencytimes/min20.32.50.8032.50.80.125
    Ram tilt angle°0-80-8
    Ram vertical adjustment distancemm315230
    Cutter head bearing surface to the distance between the forearm bedmm600485
    Table Diametermm630500
    The distance between the lower end of the sliding frame to work tablemm490320
    Max. longitudinal moving distance of working tablemm630500
    Max. transverse moving distance of working tablemm560500
    Table maximum rotation angle°360360
    Vertical and horizontal table power feed rangemm0.08-1.210.08-1.21
    Table rotary feed rangemm0.052-0.7830.052-0.783
    Motor powerkw43
    Motor speedr/min9601430
    Machine weightkg30002200
    Outline dimensionmm2261*1495*22451916*1305*1995
    Product Description

    slotting machine for metal B5020 B5032 ,price of B5032 Accurate new cheap working slotting machine

    1)The machine is used to process all kinds of parts of the plane, type and keyway, single or small batch production workshop is most suitable.

    2) The main turning mechanism is the rotary motion of the variable handle gear, which can be used for longitudinal, give.

    3) Beautiful appearance, easy maintenance.

    4) The machine uses three-phase AC power supply, voltage 380 volts, frequency 50 Hz.

    Product Features



    1. Accurate new cheap working slotting machine Being designed for cutting various plane, Formed surface and key of workpiece, the machine is suitable for single piece or small Batch production.

    2. The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the tam is achieved by a crank connecting link.

    3. An auto- matic mechanism for vertical, horizontal and rotary feeding and rotary motion of the table which is equipped with an indexing gear for rotary motion.


    Quality B5032 Accurate new cheap working slotting machine for sale
