3. More attention:
3.1. During the installation, pay attention to the assembly
dimensions of all parts of the fuselage and keep the straightness
of the whole machine.
3.2. Tighten bolts when installing bolt fasteners.
3.3. The center line of the belt at both ends shall be aligned when
making the belt joint to prevent the belt from running off.
3.4 When installing the protection part of the electric appliance,
be careful to prevent damage.

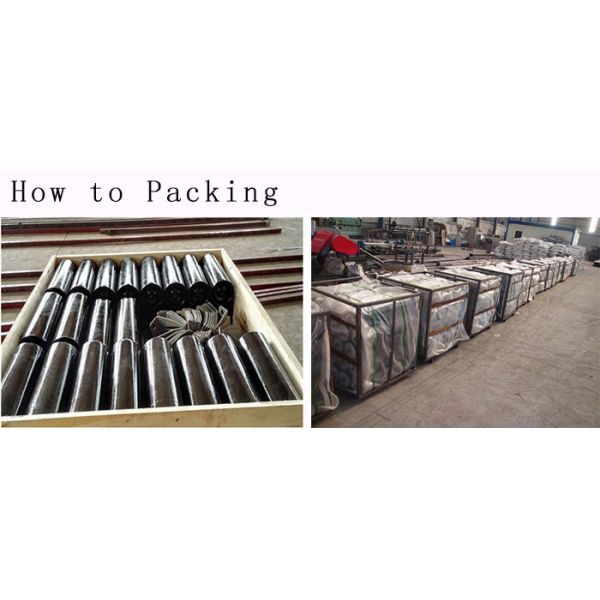

4. Packing Details:
4.1, Outer packing is plywood case, which is up to the
international standards.
4.2, Inner packing is Moisture-proof and water-proof membrane.
4.3, All of package are wrapped by 0.5mm steel belt to further
strengthen.
5. Maintenance and repair
5.1 under normal conditions, the conveyor is required to start
without load and avoid short-time starting.
5.2 it is necessary to check whether there is oil leakage in the
reducer regularly, and whether the regular oil filling volume is in
conformity with the construction in time
Correct and supplement.
5.3 if there is squeal at the driving drum, it means that the belt
is slipping. Check whether the belt is tensioned.
5.4 the belt joint shall be inspected frequently, and the damaged
parts shall be cut and redone in time, and the damaged parts shall
be protected during redoing
6. Tech data
| Belt width(mm) | Roller | Bearing NO. |
| 800 | D | L |
| 1000 | 89 | 315 | 204,205 |
| 1200 | 108 | 380 | 204,205,305 |
| 1400 | 133 | 465 | 205,305,206,306 |
| 1600 | 133 | 530 | 205,305,206,306 |
| 1800 | 159 | 600 | 205,306,307,308,309 |
| 2000 | 159 | 670 | 207,309,308 |
| 2200 | 194 | 800 | 207,307,308,309 |
| 2400 | 194 | 900 | 206,307,308,309 |
