    Custom Made XLPE Copper Cable / Black Insulation Underground Power Cable

    Ask Lasest Price
    Brand Name : SHANCABLE
    Model Number : YJLV 8.7-15KV
    Certification : ISO,CE,IEC,TUV,KEMA
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100KM/Week
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

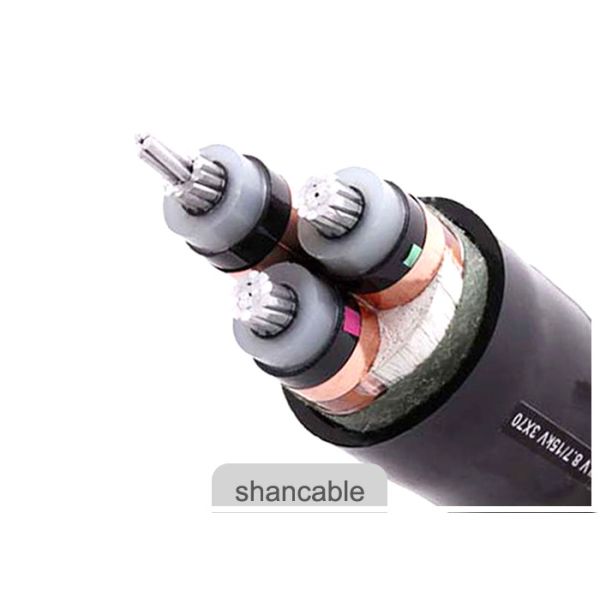

    Custom Made XLPE Copper Cable / Black Insulation Underground Power Cable

    Custom Made XLPE Copper Cable / Black Insulation Underground Power Cable


    Our enterprise can produce both flame retardant and non-flame retardant series of XLPE power cable,price high voltage power cable.


    XLPE Copper Cable Construction


    Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228

    Conductor Screen: Semi-conductor

    Insulation : XLPE (cross-linked polyethylene) rated at 90 OC

    Insulation Screen: Semi-conductor

    Screen : Copper tape

    Sheath : PVC or FR-PVC type ST2 to IEC 60502, black


    XLPE Copper Cable Applications


    XLPE Copper Cable is For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.


    Standards


    International: IEC 60502-2, IEC 60228,

    China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)

    Other standards such as BS,DIN and ICEA upon request


    XLPE Copper Cable Certificates


    CE, RoHS, , KEMA and more others at request


    XLPE Copper Cable Specifications


    Nom. Cross-section of conductorStrands No./Dia. Of ConductorInsulation ThicknessSheath ThicknessApprox. O.D.

    Approx.

    Weight

    Max. D.C Resistance of Conductor (20 ℃)Testing Voltage A.CCurrent Rating
    mm2pc/mmmmmm(mm)kg/kmΩ /kmkV/5minIn air (A)In soil(A)
    3 × 257/2.144.52.446.020721.230.595100
    3 × 357/2.524.52.648.023340.86830.5115120
    3 × 5010/2.524.52.751.025980.64130.5135140
    3 × 7014/2.524.52.855.028950.44330.5170170
    3 × 9519/2.524.52.958.034620.3230.5205210
    3 × 12024/2.524.53.061.038880.25330.5235235
    3 × 15030/2.524.53.164.044160.20630.5270260
    3 × 18537/2.524.53.268.049350.16430.5310300
    3 × 24048/2.524.53.473.057120.12530.5370345
    3 × 30061/2.524.53.577.065770. 130.5420390
    3 × 40061/2.974.53.886.080810.077830.5485440

    FAQ


    1.Q:Are you a factory or trading company?

    A: Manufacturing base in Henan ,China, with more than 500 workers.
    2.Q:How can I visit there?
    A: Sure,If you need,we will arrange the driver to pick you up.
    3.Q:How can I get some samples?
    A: Contact me on below,Determin sample and address for shipping.

    4.Q:Have you ever supplied cables to our country?

    A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
