RTAC01 Servo Motor Encoder ABB RTAC-01 Pulse Encoder Interface Module

Ask Lasest Price
Brand Name :	ABB
Model Number :	RTAC-01
Certification :	ROHS,CE,UL,CCC,VDE
Price :	Negotiable
Payment Terms :	Western Union, T/T, L/C,Paypal
Supply Ability :	1000pcs/Day
Delivery Time :	0-2 days

Add to Cart

Product Details
Company Profile

RTAC01 Servo Motor Encoder ABB RTAC-01 Pulse Encoder Interface Module

New ABB RTAC-01 Pulse Encoder Interface Module RTAC01

Global Commercial Alias:RTAC-01
ABB Type Designation:RTAC-01
Catalog Description:RTAC-01; Pulse Encoder Interface RTAC-01
Type:ABB RTAC-01 Encoder Interface for ACS800 Inverters.
Height: 165.000 mm
Length: 115.000 mm
Width: 0.400 mm
Net Weight:0.350 kg

The RTAC-01 Pulse Encoder Interface module offers an interface for a digital pulse encoder connection. A pulse encoder should be used if accurate speed or position (angle) feedback from the motor shaft is required.

Delivery check The option package contains: • RTAC-01 module • Encoder supply voltage selection jumper • Two screws (M3×8 mm) • This manual.

The RTAC-01 is to be inserted into the position marked SLOT 1 or SLOT 2 on the drive. The module is held in place with plastic retaining clips and two screws. The screws also provide the earthing of the I/O cable shield connected to the module, and interconnect the GND signals of the module and the RMIO board. On installation of the module, the signal and power connection to the drive is automatically made through a 38-pin connector. The module can alternatively be mounted on a DIN railmountable AIMA-01 I/O Module Adapter (not available at the time of publication).

Notice

no copy,no fake,no renew or rebulid,100% genuine.

in this item please confirm the right model number before you order it.

if you have any questions please mail us before you purchase it.

in this item we can provide you more photos in details if you wanna.

this item just include what you can see in the picture,all the accessories are showwed in the photos.

Why choose us?

1. Best price and large stock

2. Clients from USA, Europe, Mexico, Pakistan,Singpore, etc. purchase large quantity

3. Good service and One year warranty

4. Our company has good resources in china, and we have good partners.

5. Our company try to solve all problem for you regards product.

7. Fast response and professional answer.

8. Welcome to contact us for cooperation!

Product Tags:

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Guangzhou Sande Electric Co.,Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

RTAC01 Servo Motor Encoder ABB RTAC-01 Pulse Encoder Interface Module

RTAC01 Servo Motor Encoder ABB RTAC-01 Pulse Encoder Interface Module

RTAC01 Servo Motor Encoder ABB RTAC-01 Pulse Encoder Interface Module

absolute rotary encoder

cnc spindle encoder

RTAC01 Servo Motor Encoder ABB RTAC-01 Pulse Encoder Interface Module

You May Like

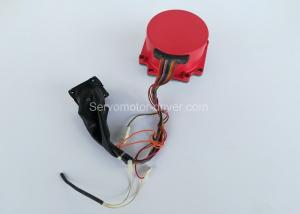

GE and Fanuc A860-0346-T141 Pulse Coder A8600346T141 For CNC Machinery
